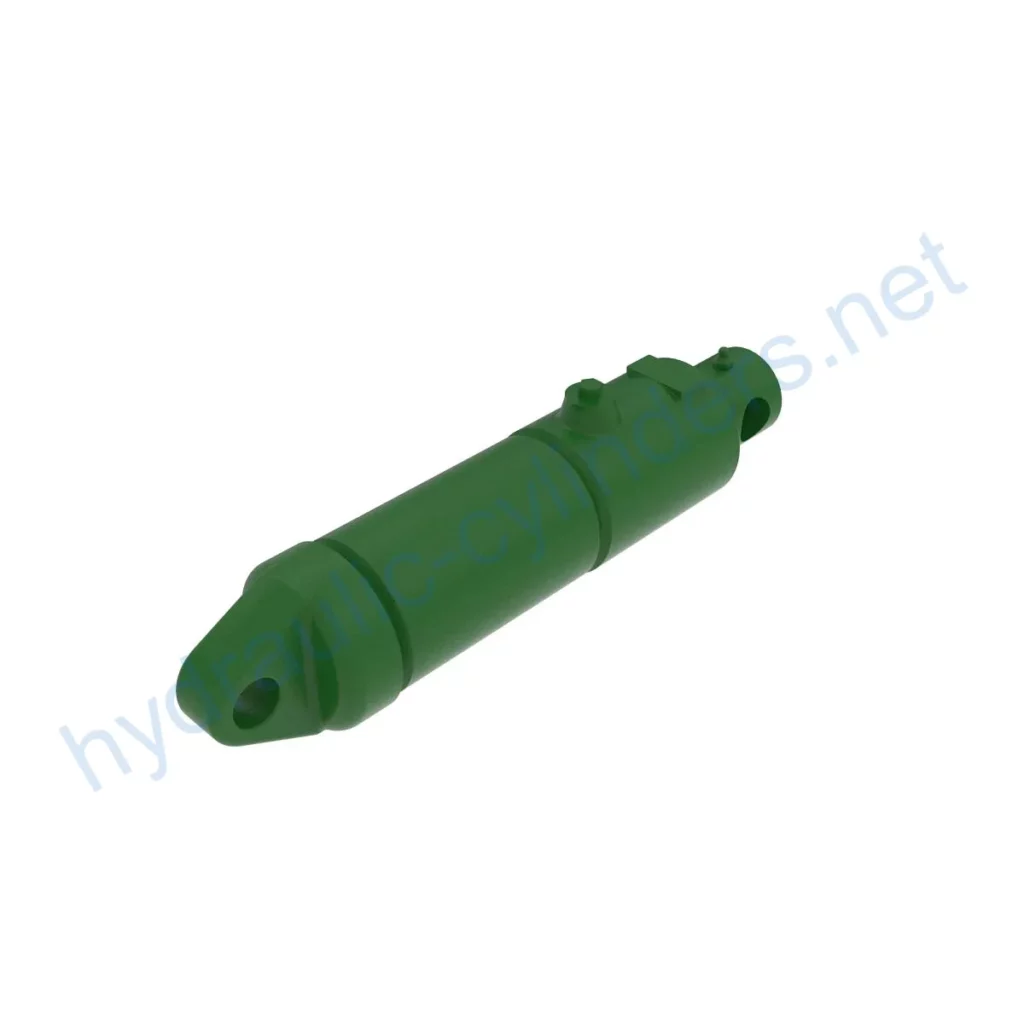

Replacement Of AHC10872 Rockshaft Hydraulic Cylinder

Introduction

The Replacement Of AHC10872 Rockshaft Hydraulic Cylinder is a crucial component for various models, including 5075M, 5085M, 5095M, 5100M, 5100MH, 5100ML, 5105M, 5115M, and 5115ML. This hydraulic cylinder is designed to provide reliable functionality and enhance the performance of equipment.

Specifications and Models

The Replacement Of AHC10872 Rockshaft Hydraulic Cylinder has the following specifications:

• Weight: 26.78 lb
• Height: 3.5 in
• Width: 4.5 in
• Length: 15.7 in

This hydraulic cylinder is compatible with the following models:

• 5075M
• 5085M
• 5095M
• 5100M
• 5100MH
• 5100ML
• 5105M
• 5115M
• 5115ML

Features

The Replacement Of AHC10872 Rockshaft Hydraulic Cylinder offers several key advantages:

1. Improved Equipment Performance: Replacing damaged or worn hydraulic cylinders restores the normal operation capability of equipment, ensuring optimal performance in various applications.
2. Enhanced Safety: Regularly replacing hydraulic cylinders reduces safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.
3. Overload Protection: The design of new cylinders often includes better overload protection mechanisms, elevating safety levels.
4. Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
5. Standardized Components: Many hydraulic cylinders are standardized products, facilitating the acquisition of replacement parts in the market.

Applications

The Replacement Of AHC10872 Rockshaft Hydraulic Cylinder finds application in various scenarios, including:

• Excavators: Hydraulic cylinders in excavator arms or buckets may get damaged due to prolonged use or overload, requiring replacement to restore normal operation.
• Cranes: Hydraulic cylinders in crane boom arms are prone to wear during frequent lifting and lowering processes, necessitating regular replacement for safety.
• Tractors: Hydraulic cylinders in front-end loader attachments of tractors may experience leaks or performance decline during continuous lifting and tilting operations, requiring replacement.
• Harvesters: The hydraulic system endures high pressures during harvesting, leading to cylinder fatigue. Timely replacement ensures work efficiency.
• Automated Production Lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. Cylinder malfunctions can significantly impact production efficiency, necessitating immediate replacement.
• Die Casting Machines: In high-pressure and high-temperature environments, hydraulic cylinders may experience performance degradation. Regular replacement ensures product quality.
• Mining Equipment: Hydraulic cylinders are used for lifting and moving heavy loads in mining equipment. Due to harsh working conditions, regular inspections and replacements are necessary to avoid equipment failures.
• Bulldozers: Wear on hydraulic cylinders in bulldozer blades can reduce pushing capacity, requiring timely replacement to maintain operational efficiency.

Maintenance Tasks

Regular maintenance tasks for the Replacement Of AHC10872 Rockshaft Hydraulic Cylinder include:

1. Periodic Inspections: Regularly inspect the cylinder for signs of wear, leaks, or damage.
2. Proper Lubrication: Apply appropriate lubrication to ensure smooth operation and prevent premature wear.
3. Seal Replacement and Calibration Checks: Replace worn seals and perform calibration checks to maintain optimal performance.

Safety Considerations and Environmental Factors

When using the Replacement Of AHC10872 Rockshaft Hydraulic Cylinder, it is essential to follow safety measures to ensure the well-being of operators and the surrounding environment. Safety precautions should always be observed to prevent accidents or injuries.

Troubleshooting and Common Issues

Common issues and troubleshooting methods for the Replacement Of AHC10872 Rockshaft Hydraulic Cylinder include:

• Issue 1: Leakage

To resolve leakage issues, check and replace damaged seals and ensure proper installation and tightness of connections.

• Issue 2: Poor Performance

If the cylinder’s performance is subpar, inspect for worn components and replace them accordingly. Additionally, check for proper lubrication and calibration.

• Issue 3: Cylinder Failure

In the event of cylinder failure, it is recommended to consult a professional for diagnosis and repair. Timely replacement of faulty components is crucial to maintain optimal functionality.

Preventive Measures

To minimize potential problems and ensure the longevity of the Replacement Of AHC10872 Rockshaft Hydraulic Cylinder, consider the following preventive measures:

• Regular Inspections: Conduct routine inspections to identify any signs of wear, leaks, or damage.
• Maintenance: Follow recommended maintenance procedures, such as lubrication and seal replacements, to prevent premature wear and ensure optimal performance.
• Proper Installation: Provide proper guidance for aligning the cylinder during installation and recommend using suitable installation supports to secure the cylinder.
• Repair and Replacement Services: Offer replacement parts and rebuilding services to enhance the lifespan of the hydraulic cylinder.
• Usage Tips: Provide tips on prolonging the lifespan of the cylinder by using it within recommended operating parameters and avoiding misuse or overloading.

Design Considerations and Selection Criteria

When choosing the Replacement Of AHC10872 Rockshaft Hydraulic Cylinder, several design considerations and selection criteria should be taken into account:

• Load-Bearing Capacity: Analyze the cylinder’s load-bearing capacity to ensure it meets the requirements of the intended application.
• Sealing Capability: Consider the cylinder’s sealing capabilities to prevent leaks and maintain efficient operation.
• Durability: Assess the cylinder’s durability to ensure it can withstand the working conditions and maintain long-term performance.
• Safety: Consider safety features incorporated into the cylinder’s design, such as overload protection mechanisms.
• Maintainability: Evaluate the ease of maintenance and repair to minimize downtime and associated costs.

Sealing and Lubrication

The Replacement Of AHC10872 Rockshaft Hydraulic Cylinder utilizes various sealing components, including piston seals and rod seals made of wear-resistant materials like polyurethane and nitrile rubber. The cylinder’s body and threaded
