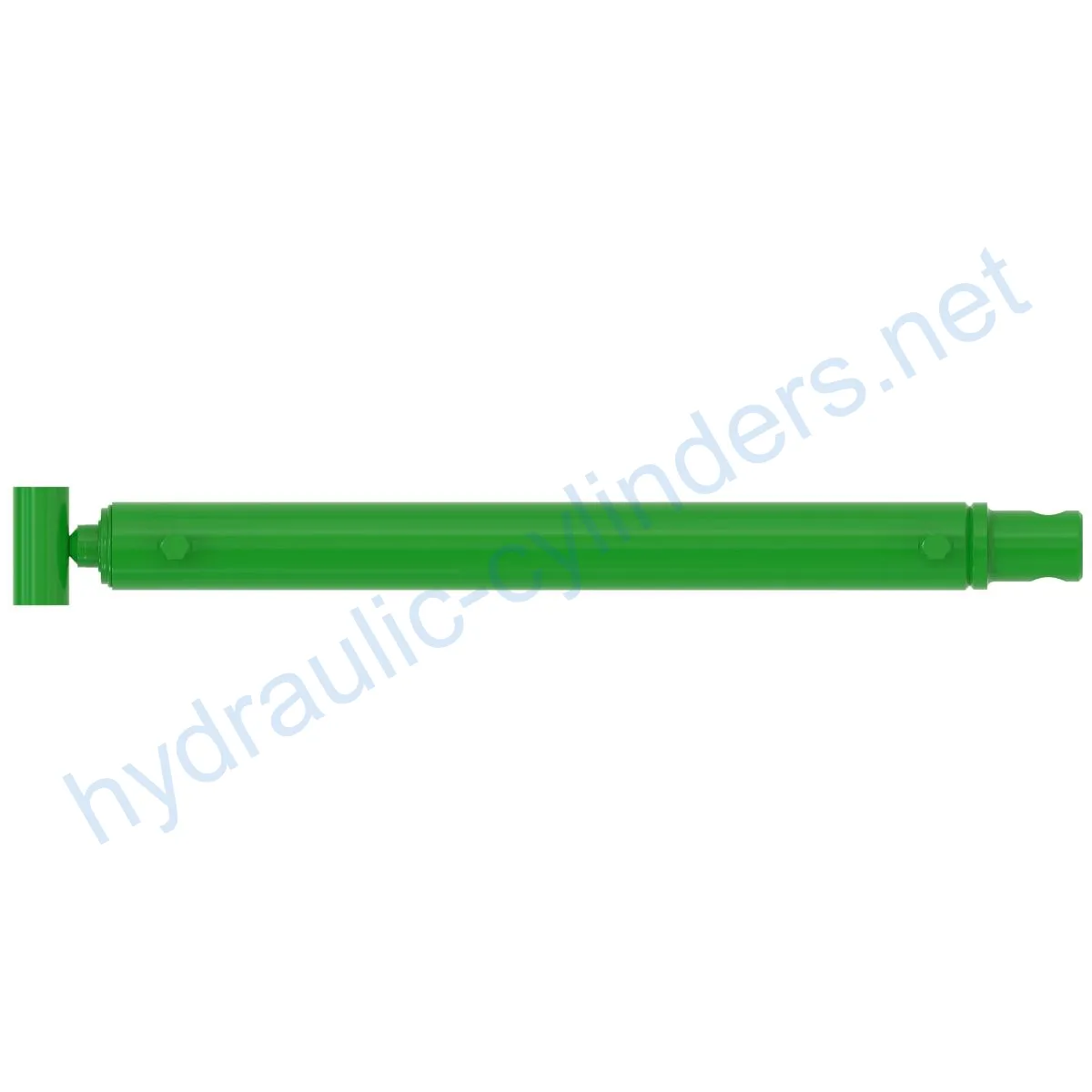

Replacement Of AHC13601 Boom Hydraulic Cylinder

The Replacement Of AHC13601 Boom Hydraulic Cylinder is an essential component for heavy machinery such as the 440R H180. It is responsible for controlling the motion of the boom and ensuring that it operates efficiently. This cylinder is designed to replace the original AHC13601 cylinder and is made to the same exacting standards.

Specifications and Model

The Replacement Of AHC13601 Boom Hydraulic Cylinder weighs 23.41 lb and has a height of 3.5 in, a width of 3.5 in, and a length of 30.5 in. It is specifically designed for the 440R H180 model.

Features

Improved Equipment Performance

Replacing damaged or worn hydraulic cylinders can restore the normal operational capabilities of the equipment and ensure its performance in various applications.

Enhanced Safety

Regularly replacing hydraulic cylinders can reduce safety hazards caused by cylinder malfunctions, ensuring the safety of operators and equipment.

Overload Protection

New cylinder designs usually consider better overload protection mechanisms, improving safety.

Quick Installation

Modern hydraulic cylinder designs usually consider easy installation and replacement, reducing downtime.

Standardized Components

Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

Applications

The Replacement Of AHC13601 Boom Hydraulic Cylinder can be used in various heavy machinery, including:

• Excavators: In excavator arm or bucket, the hydraulic cylinder may be damaged due to long-term use or overload and needs to be replaced to restore normal operation.
• Cranes: The crane’s boom hydraulic cylinder is prone to wear during frequent lifting and lowering processes and needs to be replaced regularly to ensure safety.
• Tractors: The front loader hydraulic cylinder of a tractor may leak or experience performance degradation during continuous lifting and tilting operations, requiring replacement.
• Harvesters: In the harvesting process, the hydraulic system is under high pressure, and the cylinder may be damaged due to fatigue, requiring timely replacement to maintain work efficiency.
• Automated Production Lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. In case of cylinder failure, production efficiency can be affected and requires immediate replacement.
• Die Casting Machines: Hydraulic cylinders in die casting machines may experience performance degradation in high-pressure and high-temperature environments. Regular replacement can ensure product quality.
• Mining Equipment: Hydraulic cylinders are used to lift and move heavy objects in mining equipment. Due to the harsh working environment, regular inspection and replacement are required to avoid equipment failure.
• Bulldozers: Hydraulic cylinder wear on the bulldozer’s push arm can cause a decrease in pushing ability, requiring timely replacement to maintain operational efficiency.

Maintenance

Three common maintenance tasks for the Replacement Of AHC13601 Boom Hydraulic Cylinder include:

Regular Inspection

Regular inspection can help detect any damage or leaks in the hydraulic cylinder.

Proper Lubrication

Proper lubrication can help reduce friction and wear, extending the cylinder’s lifespan.

Replacement of Seals

Replacing seals can help prevent leaks and ensure the hydraulic cylinder’s normal operation.

Safety Considerations and Environmental Factors

When using the Replacement Of AHC13601 Boom Hydraulic Cylinder, it is important to follow safety measures such as wearing protective gear and ensuring proper installation procedures to minimize potential hazards and ensure operator safety. Environmental factors such as extreme temperatures and humidity can also affect the cylinder’s performance, requiring regular maintenance and replacement.

Troubleshooting and Common Problems

Common problems that may occur with the Replacement Of AHC13601 Boom Hydraulic Cylinder include leaks, cylinder damage, and performance degradation. To diagnose these issues, inspect the cylinder regularly and check for signs of wear or damage. To solve these problems, replace the damaged parts and follow the recommended repair and replacement procedures. To prevent these issues, conduct regular maintenance and inspections.

Design Considerations and Selection Criteria

The Replacement Of AHC13601 Boom Hydraulic Cylinder is designed with key considerations such as load-bearing capacity, sealing, durability, safety, and maintainability. The cylinder is constructed with high-quality materials and designed to withstand harsh working conditions. The use of various sealing components such as piston seals, rod seals, and wear-resistant materials such as polyurethane and nitrile rubber can help improve durability and reduce wear. Regularly adding proper amounts of hydraulic oil can also help maintain lubrication and prevent performance degradation.

Installation Guide

When installing the Replacement Of AHC13601 Boom Hydraulic Cylinder, it is important to align the cylinder correctly and use appropriate installation brackets to secure the cylinder. Follow the recommended procedures for inspection, repair, and replacement to ensure optimal performance and extend the cylinder’s lifespan.

About Us

We are a manufacturer of replacement hydraulic cylinders with a wide range of products. We are one of the leading manufacturers and wholesale distributors of hydraulic cylinders in the domestic and international markets. We specialize in providing customized services, and our products are certified to international standards. We have advanced production equipment and provide comprehensive after-sales service.
