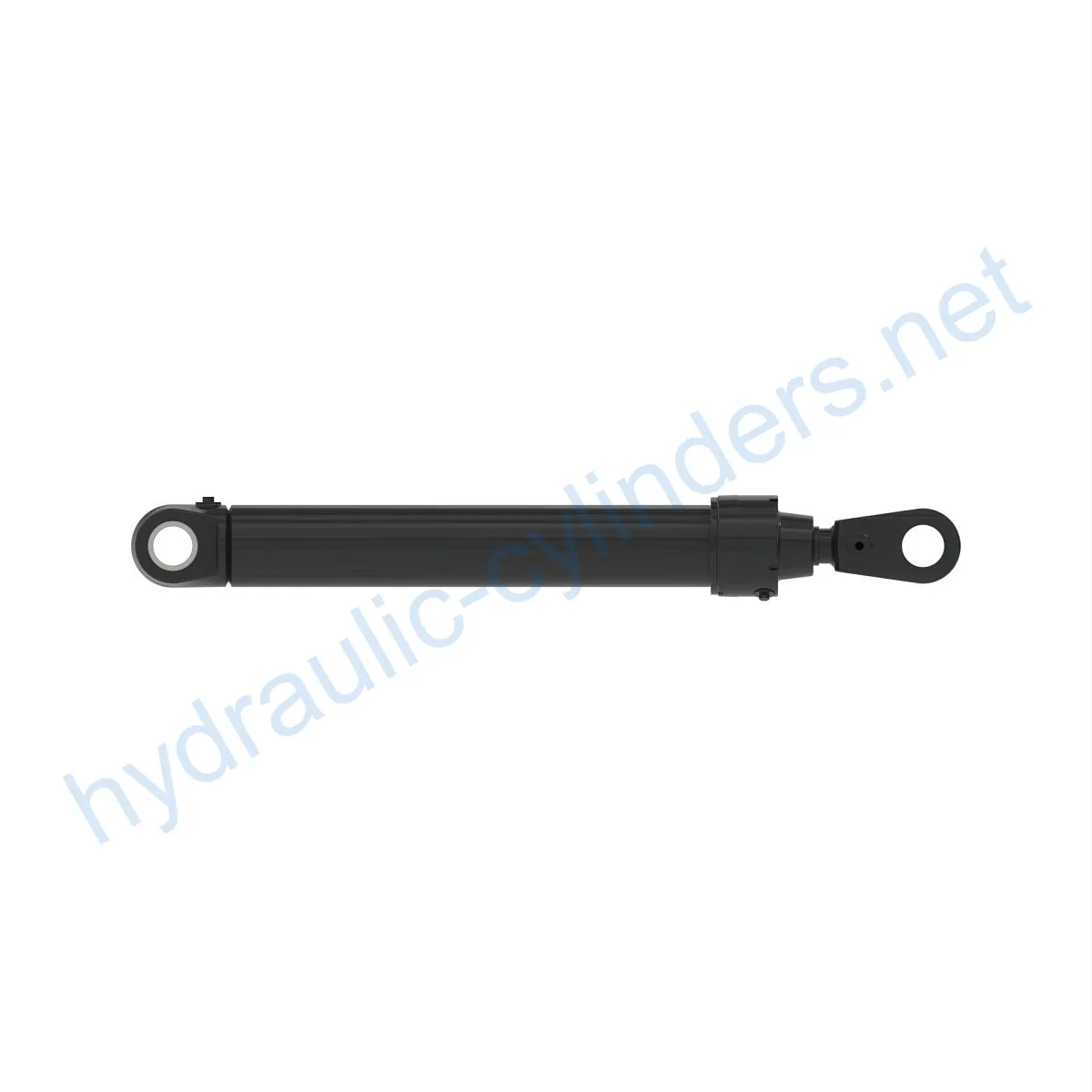

Replacement Of AHC17331 Hydraulic Cylinder

The Replacement Of AHC17331 Hydraulic Cylinder is an essential component for various heavy-duty machinery. This hydraulic cylinder is designed to provide reliable and efficient power for machines such as the 624 P 624L. It is capable of lifting heavy loads and moving equipment with ease. The Replacement Of AHC17331 Hydraulic Cylinder is built to last, with a weight of 227.3 lb, height of 7.5 in, and length of 58.2 in.

Product Specifications

Weight

227.3 lb

Height

7.5 in

Length

58.2 in

Product Features

• Improved equipment performance: Replacing damaged or worn out hydraulic cylinders can restore the normal operating capability of equipment and ensure its performance in various applications.
• Enhanced safety: Regular replacement of hydraulic cylinders can reduce the safety hazards caused by cylinder failure and ensure the safety of operators and equipment.
• Overload protection: New cylinder designs usually consider better overload protection mechanisms, enhancing safety.
• Quick installation: Modern hydraulic cylinder designs typically consider ease of installation and replacement, reducing downtime.
• Standardized components: Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

Our company produces hydraulic cylinders that can perfectly replace the Replacement Of AHC17331 Hydraulic Cylinder.

Applications

The Replacement Of AHC17331 Hydraulic Cylinder is widely used in various heavy-duty machinery, including but not limited to:

1. Excavators

   In excavators, the hydraulic cylinder may be damaged due to long-term use or overload, requiring replacement to restore normal operation.

2. Cranes

   The hydraulic cylinder in the lifting boom of a crane is prone to wear and tear during frequent lifting and lowering, requiring regular replacement to ensure safety.

3. Tractors

   The hydraulic cylinder in the front loader of a tractor may leak or experience decreased performance due to constant lifting and tilting operations, necessitating replacement.

4. Harvesters

   During harvesting, the hydraulic system experiences high pressure, and the cylinder may be damaged due to fatigue, requiring timely replacement to maintain work efficiency.

5. Automated production lines

   Hydraulic cylinders are used to control robotic arms and other automated equipment. Failure of cylinders can affect production efficiency and require immediate replacement.

6. Die-casting machines

   The hydraulic cylinder used in die-casting machines may experience decreased performance under high pressure and temperature. Regular replacement can ensure product quality.

7. Mining equipment

   Hydraulic cylinders are used in mining equipment to lift and move heavy objects. Due to the harsh working environment, regular inspection and replacement are required to avoid equipment failure.

8. Bulldozers

   The wear and tear of the hydraulic cylinder on the bulldozer’s pushing arm can lead to a decrease in the bulldozing capacity, requiring timely replacement to maintain work efficiency.

Maintenance and Repair

Regular maintenance and repair are crucial for ensuring the longevity and efficient operation of hydraulic cylinders. The following are three common maintenance tasks:

1. Regular Inspection

   Inspect the hydraulic cylinder for any signs of leakage, damage, or wear. This can help identify issues before they become major problems.

2. Lubrication

   Proper lubrication is essential for the smooth operation of hydraulic cylinders. Use the appropriate lubricant and apply it according to the manufacturer’s instructions.

3. Seal Replacement and Calibration Check

   Replacing worn-out seals and checking the calibration of the hydraulic cylinder can help prevent leaks and ensure proper operation.

It is important to ensure that the hydraulic cylinder is installed, lubricated, and adjusted correctly. Proper alignment of the cylinder is essential during installation, and the use of appropriate installation brackets is recommended. We offer a recommended inspection, repair, and replacement procedure, as well as replacement parts and rebuilding services to extend the life of the product.

Safety Considerations and Environmental Factors

Safety measures should be taken when handling hydraulic cylinders, including wearing protective gear, ensuring proper installation and maintenance, and following manufacturer instructions for use and disposal. Proper disposal of hydraulic cylinders is essential for minimizing the environmental impact, and they should be disposed of according to local regulations.

Fault Diagnosis and Troubleshooting

The following are common hydraulic cylinder problems and their diagnosis:

1. Leakage

   If the hydraulic cylinder is leaking, check the seals and replace them if necessary. If the leak persists, the cylinder may need to be replaced.

2. Noise

   If the hydraulic cylinder is making noise, check the alignment and lubrication. If these are not the issue, the cylinder may be damaged and require replacement.

3. Slow operation

   If the hydraulic cylinder is operating slowly, check for any leaks or inadequate lubrication. If these are not the issue, the cylinder may be damaged and require replacement.

Preventive measures, such as regular inspection and maintenance, can help minimize the occurrence of these problems.

Design Considerations and Selection Criteria

When selecting hydraulic cylinders, it is important to consider factors such as load-bearing capacity, sealing, durability, safety, and maintainability. The following are important design considerations:

1. Load-bearing capacity

   The hydraulic cylinder should be capable of handling the maximum loads it will be subjected to without failure.

2. Sealing

   The hydraulic cylinder should have effective seals to prevent leaks and ensure proper operation.

3. Durability

   The hydraulic cylinder should be made from high-quality materials to ensure durability and longevity.

4. Safety

   The hydraulic cylinder should be designed with safety in mind, incorporating features such as overload protection mechanisms and clear instructions for installation and maintenance.

5. Maintainability

   The hydraulic cylinder should be designed for easy maintenance, with replaceable parts and clear maintenance instructions.

Proper sealing and lubrication are also essential for the effective operation of hydraulic cylinders. Use of appropriate sealing materials, such as polyurethane or nitrile rubber, and fine surface treatments of the cylinder body and threaded end can improve wear resistance. Regular topping up of hydraulic oil also ensures optimal lubrication of the cylinder.

Installation Guide

Proper installation of the hydraulic cylinder is essential for efficient and safe operation. To install the cylinder:

1. Align the cylinder correctly

   Carefully align the cylinder with the mounting brackets before tightening the bolts.

2. Use appropriate installation brackets

   Use appropriate installation brackets to securely fasten the cylinder in place.

3. Check for leaks

   After installation, check for any leaks or damage before operating the machinery.

Our company is a leading manufacturer and wholesale distributor of hydraulic cylinders in the domestic and international markets. We are committed to providing high-quality and reliable products to our customers. Our company offers professional services, international certifications, customized solutions, state-of-the-art production equipment, and comprehensive after-sales support to our customers.
