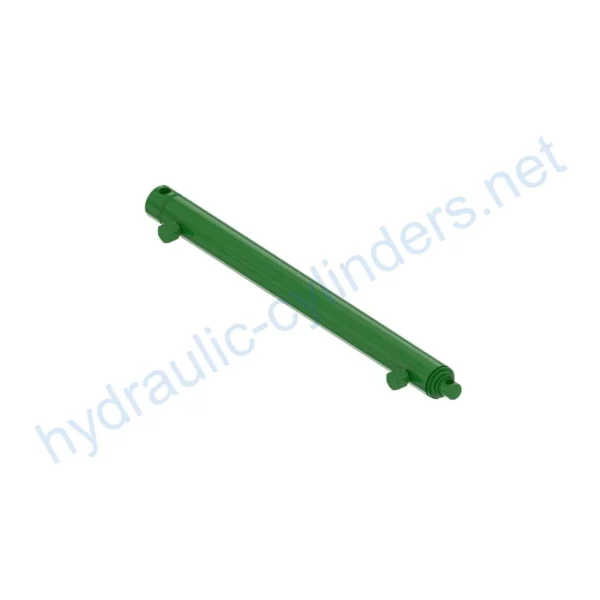

Replacement Of AHC17560 Hydraulic Cylinder

The Replacement Of AHC17560 Hydraulic Cylinder is a crucial component for various machinery models, including the 640D, 640FD, 645FD, 740D, 740FD, 745FD, HD35F, HD35R, HD40F, HD40R, HD45F, HD45R, HD50F, HD50R, RD40F, RD45F, RDF40, and RDF45. The hydraulic cylinder is responsible for converting fluid power into mechanical force and motion, enabling the machinery to perform various tasks with optimal efficiency.

Specifications and Models

Weighing 6.12 lb, with a height of 1.7 in, width of 2.4 in, and a length of 19.5 in, the Replacement Of AHC17560 Hydraulic Cylinder is compatible with various machinery models. These models differ in size and shape, but they all require this hydraulic cylinder to function properly.

Features

Improved Equipment Performance

By replacing damaged or worn-out hydraulic cylinders, machinery performance can be restored to normal, ensuring optimal performance in various applications.

Enhanced Safety

Regularly replacing hydraulic cylinders can reduce safety hazards caused by cylinder failures, ensuring the safety of the machinery and the operators.

Overload Protection

New hydraulic cylinder designs usually feature better overload protection mechanisms, enhancing safety and reducing the risk of damage to the machinery.

Quick Installation

The modern design of hydraulic cylinders usually considers easy installation and replacement, reducing downtime.

Standardized Parts

Many hydraulic cylinders are standardized products, making it easy to obtain replacement parts in the market.

Our company produces hydraulic cylinders that can perfectly replace those used in the aforementioned machinery models.

Applications

The Replacement Of AHC17560 Hydraulic Cylinder is used in various applications, including:

Excavators

The hydraulic cylinder in excavators’ arms or buckets can become damaged due to prolonged use or overload and needs to be replaced to restore normal operation.

Cranes

The hydraulic cylinders of crane booms are subject to frequent lifting and lowering, which can cause wear and tear, making regular replacement necessary to ensure safety.

Tractors

The front loader hydraulic cylinder of tractors may leak or have decreased performance due to constant lifting and tilting operations, requiring replacement.

Harvesters

During harvesting, the hydraulic system experiences high pressure, causing fatigue, which can damage the cylinder and require replacement to maintain work efficiency.

Automated Production Lines

Hydraulic cylinders are used to control robotic arms and other automation equipment. Failure of the cylinder can affect production efficiency and requires immediate replacement.

Die-Casting Machines

Hydraulic cylinders in die-casting machines may experience decreased performance under high pressure and temperature. Regular replacement can ensure product quality.

Mining Equipment

Hydraulic cylinders are used in mining equipment to lift and move heavy objects. Regular checks and replacement are necessary due to the harsh working environment.

Bulldozers

The wear and tear of the hydraulic cylinder in a bulldozer’s push arm can cause a decrease in pushing ability, requiring timely replacement to maintain work efficiency.

Maintenance

Regular maintenance is essential to ensure the longevity and optimal performance of hydraulic cylinders. The following are common maintenance tasks:

Regular Inspection

Hydraulic cylinders should be inspected regularly to identify any signs of wear and tear or potential failure.

Lubrication

The hydraulic cylinder requires proper lubrication to reduce friction and wear and tear.

Seal Replacement

Worn-out seals should be replaced to prevent fluid leaks and ensure optimal performance.

Proper installation, lubrication, and adjustment are critical in ensuring the longevity and optimal performance of the hydraulic cylinder. Correct alignment guidance should be provided during installation, and appropriate installation brackets recommended to secure the cylinder.

Our company provides recommended inspection, repair, and replacement procedures, including spare parts replacement and rebuilding services, to increase the hydraulic cylinder’s lifespan.

Safety and Environmental Considerations

Safety measures are crucial in the use of hydraulic cylinders. Safety protocols to follow include ensuring proper installation, avoiding overloading, and conducting regular maintenance and inspection. Proper disposal of used hydraulic cylinders is necessary to prevent harm to the environment.

Fault Diagnosis and Troubleshooting

Common faults affecting hydraulic cylinders include fluid leaks, insufficient pressure, slow operation, and noise. Troubleshooting these issues requires proper understanding of the hydraulic cylinder’s design and operation.

To diagnose hydraulic cylinder faults, the following steps should be taken:

检查

Inspecting the hydraulic cylinder can help identify visible signs of damage or wear and tear.

Pressure Check

Checking the hydraulic pressure can help identify any potential problems with the cylinder’s operation.

Properly diagnosing and troubleshooting hydraulic cylinder faults can expedite the repair process and minimize downtime.

Product Design and Selection Criteria

When selecting and designing hydraulic cylinders, several factors must be considered. The following are some critical factors:

Bearing Capacity

The hydraulic cylinder must be able to withstand the maximum force applied to it during operation.

Sealing

The hydraulic cylinder must have suitable seals to prevent fluid leaks and optimize performance.

Durability

The hydraulic cylinder must be durable enough to withstand the harsh working environment and prolonged use.

Safety

The hydraulic cylinder must be designed with safety in mind, including overload protection and proper installation procedures.

Maintenance

The hydraulic cylinder must be easy to maintain and repair to maximize its lifespan and optimize performance.

The hydraulic cylinder should use quality seals such as piston seals, rod seals, and others made of wear-resistant materials such as polyurethane and nitrile rubber. The cylinder body and threaded end surface should be finely processed to improve wear resistance. Regular lubrication and proper hydraulic oil must be used to ensure optimal performance.

Regular inspection and preventive maintenance should be carried out to ensure the hydraulic cylinder’s optimal performance and longevity.

Company Introduction

Our company is a leading manufacturer and wholesale distributor of hydraulic cylinders, producing a wide range of hydraulic cylinder replacements that cater to the diverse needs of various machinery models.

Our company prides itself on its professionalism, international certifications, custom services, production equipment, and after-sales services.

We provide custom-made hydraulic cylinders and offer innovative solutions to meet our clients’ unique requirements. Our products are backed by excellent after-sales service and technical support, ensuring our clients enjoy optimal performance and product longevity.

Author: lyl
