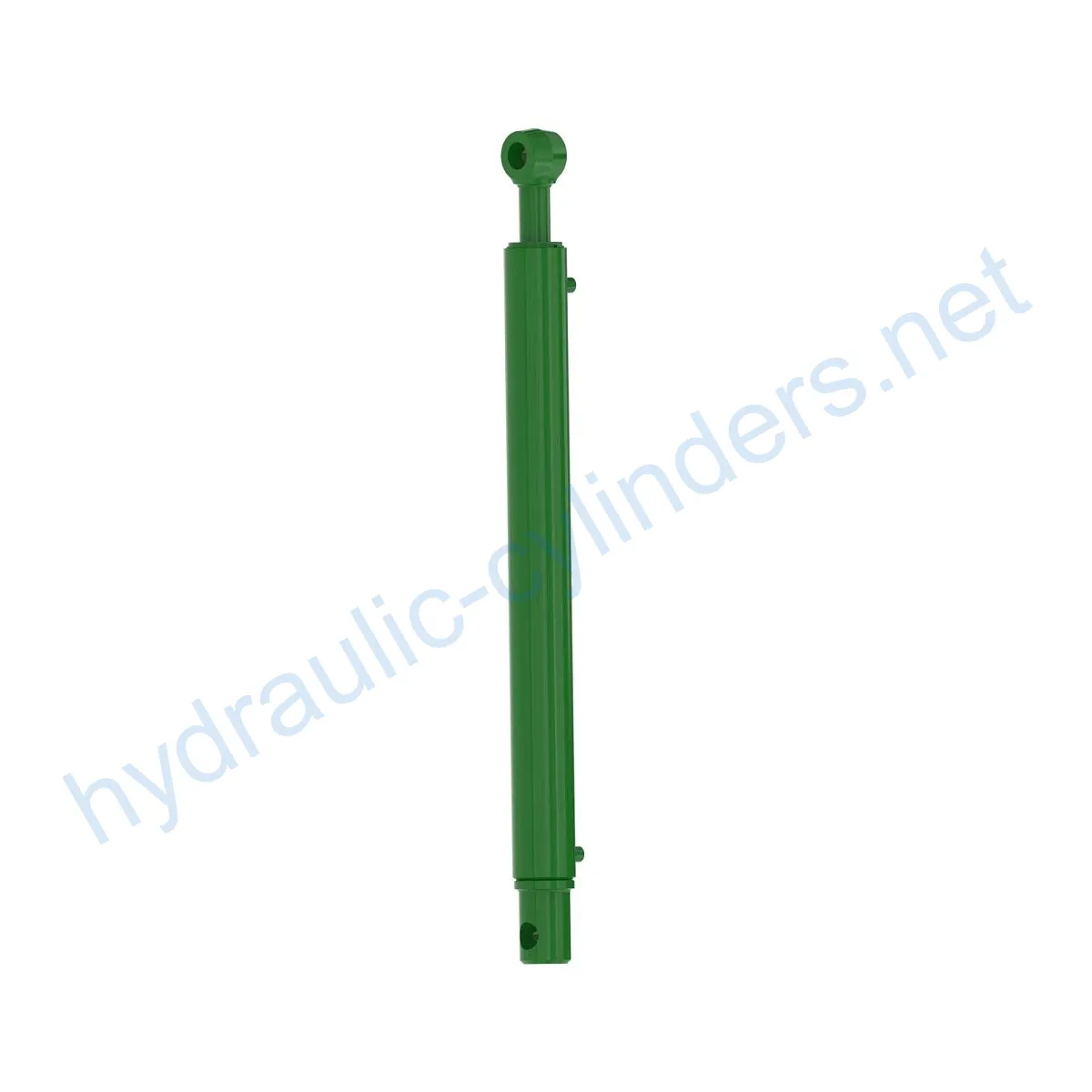

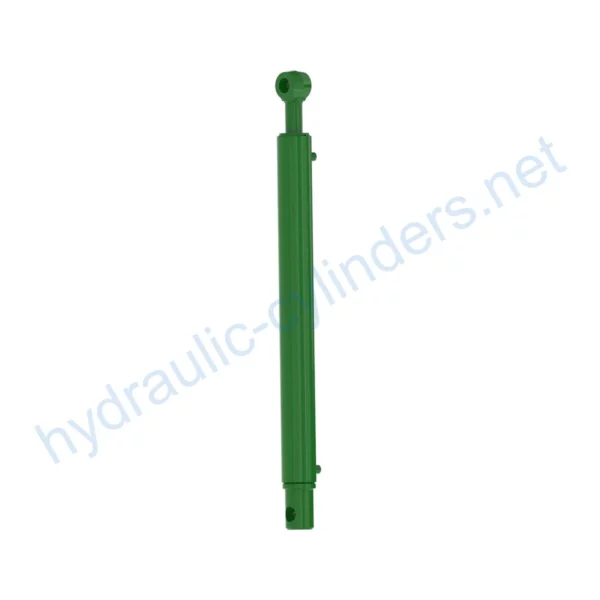

Replacement Of AHC19331 Hydraulic Cylinder

Replacement Of AHC19331 Hydraulic Cylinder

The Replacement Of AHC19331 Hydraulic Cylinder is a crucial component that plays a vital role in various hydraulic systems. This hydraulic cylinder is designed to provide efficient power transmission and control, ensuring the smooth operation of equipment. With a weight of 50 lb, height of 3.3 in, width of 4.5 in, and length of 43 in, it is specifically designed for the 540R model.

Specifications and Model

The Replacement Of AHC19331 Hydraulic Cylinder possesses the following specifications:

• Weight: 50 lb
• Height: 3.3 in
• Width: 4.5 in
• Length: 43 in

This hydraulic cylinder is compatible with the 540R model, ensuring a perfect fit and optimal performance.

Product Features

1. Improved Equipment Performance

Replacing damaged or worn-out hydraulic cylinders can restore the normal operational capabilities of equipment, ensuring optimal performance across various applications.

2. Enhanced Safety

Regularly replacing hydraulic cylinders reduces safety hazards caused by cylinder malfunctions, ensuring the safety of operators and equipment.

3. Overload Protection

Newly designed cylinders often incorporate better overload protection mechanisms, enhancing overall safety.

4. Quick Installation

Modern hydraulic cylinders are designed with easy installation and replacement in mind, minimizing downtime.

5. Standardized Components

Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

We specialize in manufacturing hydraulic cylinders that are perfect replacements for various models. Our products are designed to meet the highest standards and provide reliable performance.

Applications

The Replacement Of AHC19331 Hydraulic Cylinder finds its applications in various scenarios, including:

1. Excavators: Replacing hydraulic cylinders on the arm or bucket of excavators restores their normal operation after long-term use or overloading.
2. Cranes: Hydraulic cylinders in crane boom systems are prone to wear during frequent lifting and lowering processes, necessitating regular replacements to ensure safety.
3. Tractors: The front loader hydraulic cylinders of tractors may experience leaks or reduced performance during continuous lifting and tilting operations, requiring replacement.
4. Combine Harvesters: Hydraulic cylinders in the harvesting process withstand high pressures and may suffer fatigue damage, necessitating timely replacements to maintain operational efficiency.
5. Automated Production Lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. Failure of these cylinders can significantly impact production efficiency and should be replaced immediately.

Maintenance Tasks

Regular maintenance is essential to ensure the longevity and optimal performance of the Replacement Of AHC19331 Hydraulic Cylinder. Some common maintenance tasks include:

1. Regular Inspections: Periodic inspections help identify any signs of wear or damage in the hydraulic cylinder, allowing for timely repairs or replacements.
2. Proper Lubrication: Adequate lubrication ensures smooth operation and prevents excessive friction, extending the lifespan of the hydraulic cylinder.
3. Seal Replacement and Calibration Checks: Regularly replacing worn-out seals and calibrating the cylinder helps maintain its efficiency and prevents leaks.

During installation, it is important to provide proper guidance for aligning the cylinder correctly, recommend using suitable mounting brackets to secure the cylinder, and adhere to recommended inspection, repair, and replacement procedures. We offer replacement parts and rebuilding services to enhance the longevity of the hydraulic cylinder.

Safety Considerations and Environmental Factors

When using the Replacement Of AHC19331 Hydraulic Cylinder, it is crucial to prioritize safety measures. Proper handling, maintenance, and usage of safety equipment are essential to prevent accidents and ensure operator safety. Adhering to environmental regulations and disposing of hydraulic components correctly contribute to a sustainable and eco-friendly approach.

Fault Diagnosis and Common Issues

It is important to be aware of potential faults and common issues that may arise with the Replacement Of AHC19331 Hydraulic Cylinder. Some common problems include:

• Leakage from seals or fittings
• Loss of power or insufficient force
• Excessive noise or vibration
• Inconsistent or jerky movement

To address these issues effectively, consider the following troubleshooting tips:

• Inspect and tighten all fittings and connections
• Check and replace worn-out seals
• Ensure proper alignment and positioning of the cylinder
• Monitor fluid levels and viscosity

Implementing preventive measures such as regular maintenance, proper lubrication, and periodic inspections can help minimize potential problems and ensure the reliable performance of the hydraulic cylinder.

Design Considerations and Selection Criteria

The design of the Replacement Of AHC19331 Hydraulic Cylinder takes into account various factors to ensure its reliability and functionality. Key considerations include:

• Bearing Capacity: The hydraulic cylinder is designed to withstand the intended loads and forces.
• Sealing: The cylinder incorporates various sealing components, such as piston seals and rod seals, made of durable materials like polyurethane and nitrile rubber to ensure effective sealing and prevent leakage.
• Durability: The cylinder body and threaded ends are finely treated to enhance wear resistance and ensure long-lasting performance.
• Safety: The design includes safety features and mechanisms to prevent failures and ensure the protection of operators and equipment.
• Maintainability: The cylinder is designed for ease of maintenance, facilitating inspection, repair, and replacement procedures.

Sealing and Lubrication

The Replacement Of AHC19331 Hydraulic Cylinder utilizes various sealing elements to maintain hydraulic integrity. These include piston seals, rod seals, and other critical components. These seals are made from wear-resistant materials such as polyurethane, ensuring optimal performance. Additionally, the cylinder body and threaded ends undergo careful treatment to improve wear resistance. Regular lubrication with the appropriate hydraulic oil is necessary to ensure smooth operation and prevent excessive wear.

Regular Inspection and Preventive Maintenance

To maximize the lifespan and performance of the Replacement Of AHC19331 Hydraulic Cylinder, it is vital to conduct regular inspections and implement preventive maintenance measures. Proper installation, lubrication, and adjustment play a significant role in ensuring optimal performance. Providing accurate guidance for aligning the cylinder during installation and recommending the use of suitable mounting brackets to secure the cylinder are essential. We offer inspection, repair, and replacement services to enhance the longevity of the hydraulic cylinder and provide tips to extend its lifespan.

Product Installation Guidelines

For proper installation of the Replacement Of AHC19331 Hydraulic Cylinder, follow these guidelines:

1. Prepare the installation area and ensure it is clean and free from debris.
