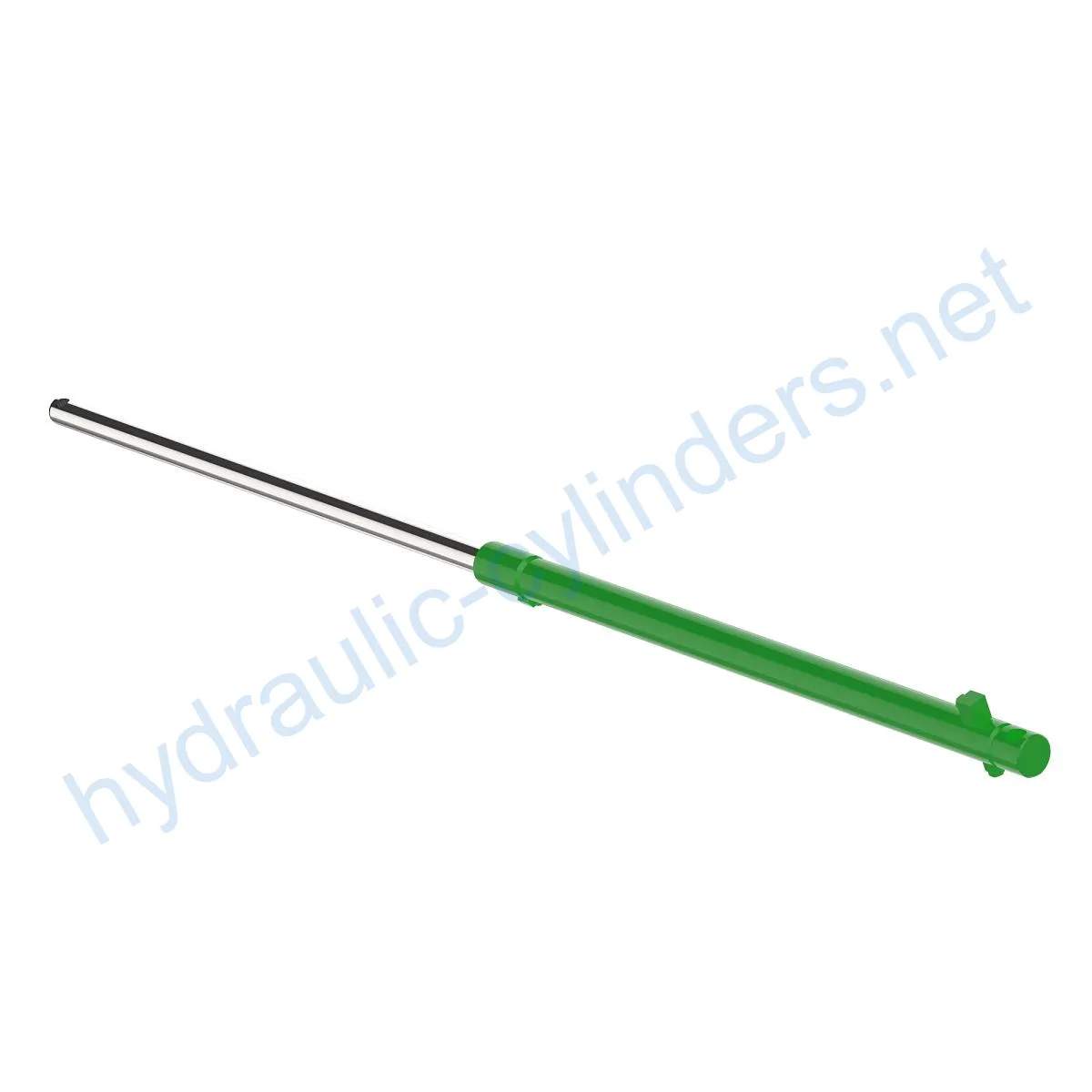

Replacement Of AHC24304 Hydraulic Cylinder

The Replacement Of AHC24304 Hydraulic Cylinder is a crucial component used in various industrial applications. This hydraulic cylinder is designed to provide reliable and efficient operation, ensuring the smooth functioning of equipment. It is commonly used in models such as 7660, 7760, CP690, and CS690.

Product Specifications

• Weight: 35.074 lb
• Height: 3 in
• Width: 4.5 in
• Length: 43 in

Product Features

Replacing damaged or worn hydraulic cylinders, such as the AHC24304, offers several advantages:

1. Improved Equipment Performance: Replacing damaged or worn hydraulic cylinders can restore the equipment’s normal operational capabilities, ensuring optimal performance in various applications.
2. Enhanced Safety: Regularly replacing hydraulic cylinders can reduce safety hazards associated with cylinder failures, ensuring the safety of operators and equipment.
3. Overload Protection: New cylinder designs often incorporate improved overload protection mechanisms, enhancing overall safety.
4. Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
5. Standardized Components: Many hydraulic cylinders are standardized, making it easier to obtain replacement parts in the market.

We specialize in manufacturing hydraulic cylinders that perfectly replace and outperform the original ones. Our products are designed to meet the highest standards of quality and reliability.

Applications

The Replacement Of AHC24304 Hydraulic Cylinder finds various applications in different industries. Here are a few examples:

1. Excavators: Hydraulic cylinders in excavator booms or buckets may suffer damage or wear due to prolonged use or overload, requiring replacement to restore normal operation.
2. Cranes: Hydraulic cylinders in crane boom lifts are susceptible to wear during frequent lifting and lowering processes, necessitating regular replacement to ensure safety.
3. Tractors: Hydraulic cylinders in front-end loaders of tractors may experience leaks or performance decline during continuous lifting and tilting operations, requiring replacement.
4. Harvesters: Hydraulic cylinders in harvesters endure high pressure during the harvesting process. Timely replacement is necessary to maintain work efficiency and prevent fatigue-related failures.
5. Automated Production Lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. Prompt replacement is crucial to minimize production downtime caused by cylinder failures.
6. Die Casting Machines: In high-pressure and high-temperature environments, hydraulic cylinders may experience performance decline. Regular replacement ensures product quality.
7. Mining Equipment: Hydraulic cylinders are used in mining equipment for lifting and moving heavy loads. Regular inspections and replacements are necessary to avoid equipment failures due to harsh working conditions.
8. Bulldozers: Hydraulic cylinder wear on bulldozer pushing arms can lead to decreased pushing capacity, requiring timely replacement to maintain operational efficiency.

Maintenance Tasks

Regular maintenance is essential to ensure the longevity and optimal performance of hydraulic cylinders. Here are three common maintenance tasks:

1. Regular Inspections: Periodically inspecting hydraulic cylinders for signs of wear, leaks, or damage is crucial to identify any potential issues.
2. Proper Lubrication: Appropriate lubrication helps reduce friction and extend the lifespan of hydraulic cylinders. Ensure the correct type and amount of hydraulic oil is used.
3. Sealing Replacement and Calibration Checks: Regularly replacing seals and conducting calibration checks ensures proper sealing and optimal performance of hydraulic cylinders.

During installation, it is important to provide proper guidance for aligning the cylinder correctly. We recommend using suitable installation brackets to secure the cylinder in place. Additionally, we offer inspection, repair, and replacement services, along with tips to improve the lifespan of hydraulic cylinders.

Safety Considerations and Environmental Factors

When working with hydraulic cylinders, safety measures are of utmost importance. It is crucial to follow all safety protocols and guidelines to prevent accidents and injuries. Additionally, considering environmental factors such as fluid leaks and proper disposal of hydraulic fluids is essential to minimize environmental impact.

Fault Diagnosis and Common Issues

Hydraulic cylinders may encounter various faults and issues. Here are some common problems:

1. Leaking Seals: Seals can deteriorate over time, leading to fluid leaks. Regular inspection and seal replacement can resolve this issue.
2. Slow Operation: Hydraulic cylinders may exhibit slow operation due to internal component wear. Proper lubrication and component replacement can improve performance.
3. Insufficient Power: If a hydraulic cylinder lacks adequate power, it may be due to low fluid levels or a faulty hydraulic pump. Checking fluid levels and troubleshooting the hydraulic system can help identify the cause.
4. Abnormal Noise: Unusual noises during cylinder operation may indicate internal damage or misalignment. Inspecting and adjusting the cylinder can resolve this issue.
5. Seizure: Seizure occurs when the cylinder becomes stuck or fails to move smoothly. Regular lubrication and cleaning can prevent this problem.

We provide troubleshooting tips and solutions to help readers effectively diagnose and resolve hydraulic cylinder issues. We also offer preventive measures to minimize potential problems.

Design Considerations and Selection Criteria

When designing and selecting hydraulic cylinders, several factors should be considered:

1. Load-Bearing Capacity: Choosing a hydraulic cylinder with the appropriate load-bearing capacity ensures optimal performance.
2. Sealing Capability: High-quality seals, such as piston seals and rod seals made of durable materials like polyurethane or nitrile rubber, help maintain effective sealing.
3. Durability: Hydraulic cylinders with well-treated cylinder bodies and threaded end surfaces improve wear resistance and overall durability.
4. Safety: Incorporating safety features like overload protection mechanisms enhances the safety of hydraulic cylinders.
5. Maintainability: Designing hydraulic cylinders for easy maintenance by providing accessible components and clear instructions simplifies the maintenance process.

Sealing and Lubrication

Proper sealing and lubrication are vital for the optimal performance and longevity of hydraulic cylinders. Key considerations include:

• Using various sealing components, such as piston seals and rod seals, made from wear-resistant materials like polyurethane or nitrile rubber.
• Implementing fine surface treatments on cylinder bodies and threaded end surfaces to enhance wear resistance.
• Regularly lubricating hydraulic cylinders with the appropriate amount of hydraulic oil to ensure smooth operation and reduce friction.

Regular Inspection and Preventive Maintenance

Regular inspection and preventive maintenance tasks for hydraulic cylinders are crucial to maximize their lifespan and performance. Some measures include:

• Proper installation, lubrication, and adjustment play a significant role in maintaining cylinder efficiency and reliability.
• Providing accurate
