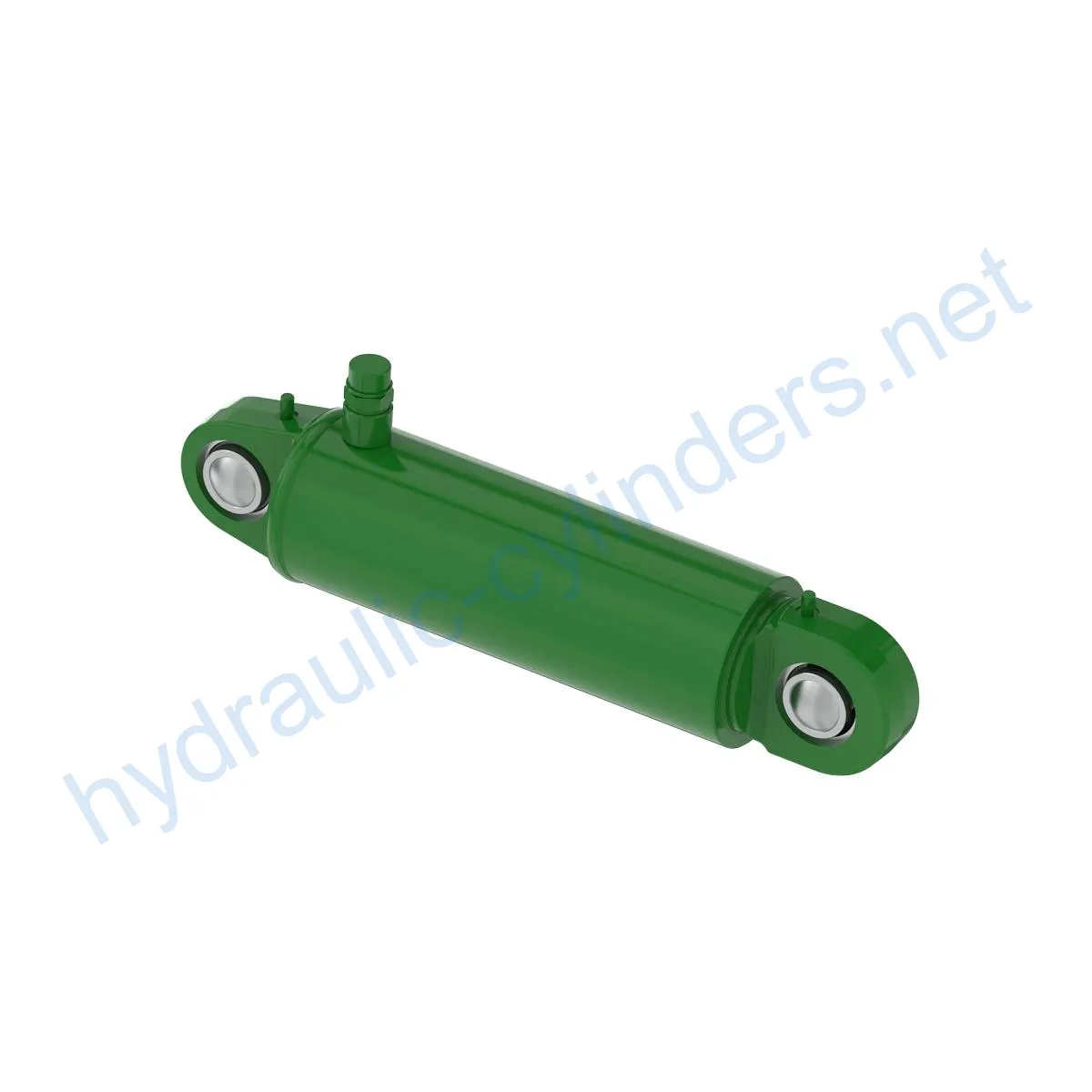

Replacement Of AL213024 Lift Hydraulic Cylinder

Product Introduction

The Replacement Of AL213024 Lift Hydraulic Cylinder is a hydraulic cylinder designed to replace the AL213024 model. It plays a crucial role in various applications, providing the necessary power for lifting and moving heavy loads.

Specifications and Models

The Replacement Of AL213024 Lift Hydraulic Cylinder has the following specifications:

• Weight: 43.17 lb
• Height: 4.1 in
• Width: 5.3 in
• Length: 18.5 in

Compatible models include:

• 6100 MC
• 6100 RC
• 6105M
• 6110 MC
• 6110 RC
• 6125M
• 6130M
• 6300
• 6310
• 6320
• 6330
• 6400
• 6410
• 6420
• 6420S
• 6430
• 6506
• 6510
• 6510S
• 6520
• 6530
• 6534
• 6600
• 6605
• 6610
• 6615
• 6620
• 6715
• 7130
• 7230

Product Features

1. Improved Equipment Performance: Replacing damaged or worn-out hydraulic cylinders can restore the normal operating capability of equipment, ensuring its performance in various applications.
2. Enhanced Safety: Regularly replacing hydraulic cylinders can reduce safety risks associated with cylinder failures, ensuring the safety of operators and equipment.
3. Overload Protection: New cylinder designs often incorporate better overload protection mechanisms, increasing safety levels.
4. Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
5. Standardized Components: Many hydraulic cylinders are standardized products, facilitating the acquisition of replacement parts in the market.

Applications

The Replacement Of AL213024 Lift Hydraulic Cylinder is commonly used in various applications:

1. Excavators: Hydraulic cylinders in excavator arms or buckets may get damaged due to prolonged use or overloading, requiring replacement to restore normal operation.
2. Cranes: Hydraulic cylinders in crane booms are prone to wear during frequent lifting and lowering processes, necessitating regular replacement for safety assurance.
3. Tractors: Hydraulic cylinders in front-end loaders of tractors may experience leaks or performance degradation during continuous lifting and tilting operations, requiring replacement.
4. Harvesters: Hydraulic cylinders in harvesting equipment endure high pressure during the harvesting process and may suffer fatigue damage, requiring timely replacement to maintain work efficiency.
5. Automated Production Lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. Cylinder failures can impact production efficiency and should be promptly replaced.
6. Die-casting Machines: Hydraulic cylinders in die-casting machines may experience performance degradation under high pressure and temperature conditions. Regular replacement ensures product quality.
7. Mining Equipment: Hydraulic cylinders are used for lifting and moving heavy loads in mining equipment. Regular inspection and replacement are necessary to avoid equipment failures in harsh working environments.
8. Bulldozers: Worn hydraulic cylinders on bulldozer blades can result in reduced pushing capabilities, requiring timely replacement to maintain operational efficiency.

Maintenance Tasks

Regular maintenance tasks for the Replacement Of AL213024 Lift Hydraulic Cylinder include:

1. Periodic Inspection: Regularly inspect the cylinder for signs of wear, leaks, or other issues that may affect its performance.
2. Proper Lubrication: Ensure proper lubrication by applying the appropriate amount of hydraulic oil at recommended intervals.
3. Seal Replacement and Calibration Check: Replace worn seals and perform calibration checks to maintain optimal performance.

Safety Considerations and Environmental Factors

When using hydraulic cylinders, it is essential to prioritize safety measures. Adequate safety precautions must be taken to prevent accidents and ensure the well-being of operators and equipment. It is also crucial to consider environmental factors and adhere to regulations to minimize any negative impact.

Troubleshooting and Common Issues

Common issues and troubleshooting for the Replacement Of AL213024 Lift Hydraulic Cylinder include:

1. Leakage: Check for any signs of leakage and inspect seals and connections for possible damage.
2. Slow Operation: Inspect the hydraulic system for potential blockages or insufficient pressure.
3. Abnormal Noise: Investigate the source of unusual noises, which can indicate mechanical issues or loose components.

For troubleshooting, it is recommended to consult the manufacturer’s guidelines and seek professional assistance if needed.

Design Considerations and Selection Criteria

When selecting the Replacement Of AL213024 Lift Hydraulic Cylinder, various design considerations and selection criteria should be taken into account:

1. Load-Bearing Capacity: Ensure that the hydraulic cylinder can handle the expected loads without compromising performance or safety.
2. Sealing: The cylinder should have effective sealing mechanisms, such as piston seals and rod seals, to prevent leaks and maintain efficiency.
3. Durability: The hydraulic cylinder should be designed to withstand the expected operating conditions and provide long-lasting performance.
4. Safety: Incorporate safety features and consider safety standards to minimize risks to operators and equipment.
5. Maintainability: The design should allow for easy maintenance, including seal replacements and other routine tasks.

Sealing and Lubrication

The Replacement Of AL213024 Lift Hydraulic Cylinder utilizes various seals, such as polyurethane and nitrile rubber,
