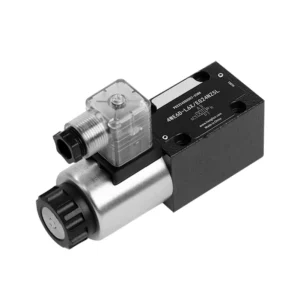

WE Series Directional Hydraulic Valve With Wet-pin AC Or DC Solenoid

The WE series directional hydraulic valve with wet-pin AC or DC solenoid is an exceptional product designed to provide precise control, seamless performance, and enhanced efficiency in hydraulic systems. This advanced valve combines cutting-edge technology with robust construction to meet the demanding requirements of various industries.

The WE series directional hydraulic valve with wet-pin AC or DC solenoid is a reliable and high-performance solution for hydraulic systems. Its wet-pin solenoid design, exceptional directional control, high flow capacity, and versatility empower operators with precise control and efficient fluid management. Following the recommended usage methods and adhering to regular maintenance practices, the WE Series valve will continue delivering exceptional performance. Upgrade your hydraulic system with the WE series directional hydraulic valve and experience the benefits of precision, efficiency, and reliability.

WE Series Directional Hydraulic Valve With Wet-pin AC Or DC Solenoid Key Characteristics:

• Wet-pin AC or DC Solenoid:
  • The WE Series Valve features a wet-pin AC or DC solenoid, ensuring reliable and responsive actuation in hydraulic systems.
  • This solenoid design enhances the valve’s performance, providing precise control over fluid flow.
• Directional Control:
  • This hydraulic valve offers exceptional directional control, allowing operators to manage the flow of hydraulic fluid precisely.
  • With the WE Series Valve, users can easily direct fluid to different actuators or components within the hydraulic system.
• High Flow Capacity:
  • The WE Series Valve is designed to handle high flow rates, making it suitable for applications that require substantial fluid flow.
  • Its optimized internal passages and robust construction ensure minimal pressure drop and efficient fluid management.
• Versatility:
  • This valve is highly versatile and can be used across various industries, including manufacturing, construction, agriculture, and more.
  • It is suitable for hydraulic systems requiring reliable and precise fluid flow control.

WE Series Directional Hydraulic Valve With Wet-pin AC Or DC Solenoid Parameter:

WE Series Directional Hydraulic Valve With Wet-pin AC Or DC Solenoid Advantages:

NG6-L6X
• Direct solenoid control slide valve
• Installation face follow DIN 24340 A, ISO 4401 and CETOP-RP 121H sub-plate mounting connection sub-plate mounting connection
• Wet-pin AC or DC solenoids with detachable coil
• Replace coil without releasing oil
• Electrical connection as individual or central connection
NG10-L3X
• Direct solenoid control slide valve
• Installation face follow DIN 24340 A, ISO 4401 and CETOP-RP 121H sub-plate mounting connection sub-plate mounting connection
• DC solenoid with removable coil
• Replace coil without releasing oil
NG10-L5X
• Direct solenoid control slide valve
• Installation face follow DIN 24340 A, ISO 4401 and CETOP-RP 121H sub-plate mounting connection sub-plate mounting connection
• DC or AC solenoid with removable coil (using a rectifier to connect to AC)
• Solenoid coil can rotate 90°
• Replacing the coil does not require opening the sealed chamber
• Optional time switch control function

Usage Method Of WE Series Directional Hydraulic Valve With Wet-pin AC Or DC Solenoid:

1. System Integration:
   • Identify the optimal location for the WE series valve within the hydraulic system, considering the desired flow path and control requirements.
   • Ensure compatibility with the system’s pressure and flow specifications.
   • Mount the valve securely using appropriate brackets or mounting accessories.
2. Fluid Connections:
   • Select compatible hydraulic fittings and hoses for secure and leak-free connections.
   • Follow the manufacturer’s instructions for proper torque values during the installation process.
   • Use appropriate thread sealants or tape to ensure reliable seals.
3. Solenoid Actuation:
   • Understand the wet-pin AC or DC solenoid actuation mechanism of the valve.
   • Connect the solenoid to the designated power source according to the manufacturer’s instructions.
   • Ensure proper polarity and voltage requirements for the solenoid.
4. Control and Adjustment:
   • Employ the recommended control method, such as manual levers or electrical controls, to operate the WE series valve.
   • Adjust the valve settings according to the desired flow direction and rates, ensuring optimal performance.

How Do Hydraulic Control Valves Work?

Hydraulic control valves are crucial in regulating the flow and pressure of hydraulic fluid within a system. They enable operators to control the movement of actuators and machinery, ensuring precise and efficient operation. Here’s a breakdown of how hydraulic control valves work:

1. Valve Structure:
   • Hydraulic control valves comprise a valve body that houses various internal components, including spools, poppets, or discs.
   • These internal components can move within the valve body to control the flow of hydraulic fluid.
2. Fluid Flow:
   • Hydraulic control valves have multiple ports that connect to different sections of the hydraulic system.
   • The hydraulic fluid enters the valve through an inlet port and flows through internal passages within the valve body.
3. Valve Operation:
   • Hydraulic control valves can be operated manually, mechanically, or through solenoid or pilot control.
   • A lever or knob typically operates manual valves, while mechanical valves may use a cam, linkage, or other mechanical mechanisms.
   • Solenoid or pilot-operated valves utilize an electrical or pneumatic signal to actuate the valve components.
4. Spool or Poppet Movement:
   • The movement of spools or poppets within the valve body determines the flow of hydraulic fluid.
   • Spools are cylindrical components with lands or grooves machined into their surfaces, while poppets are movable plug-like elements.
   • When a spool or poppet is in a particular position, it allows hydraulic fluid to flow through specific passages while blocking others.
5. Directional Control Valves:
   • Directional control valves regulate the flow of hydraulic fluid to control the direction of movement in hydraulic cylinders or motors.
   • They typically have multiple ports, including inlet, outlet, and work ports.
   • Positioning the spool or poppet allows the operator to direct fluid flow to the desired work port, enabling the hydraulic actuator to extend or retract.
6. Pressure Control Valves:
   • Pressure control valves regulate the pressure of hydraulic fluid within a system.
   • They can maintain a specific pressure level or limit it to prevent damage to hydraulic components.
   • Pressure control valves often include an adjustable spring and a spool or poppet mechanism to control the opening and closing of the valve.
7. Flow Control Valves:
   • Flow control valves govern the rate of hydraulic fluid flow in a system.
   • They can restrict or throttle the fluid flow, allowing for precise speed control of hydraulic actuators.
   • Flow control valves often feature an adjustable orifice or a needle valve to regulate the flow rate.
8. Other Valve Types:
   • Hydraulic control valves come in various types, including check valves, relief valves, and sequence valves.
   • Check valves allow fluid flow in one direction while preventing backflow.
   • Relief valves protect the system from excessive pressure by diverting excess fluid flow back to the reservoir.
   • Sequence valves control the sequence of operation in a hydraulic circuit, enabling one actuator to complete its stroke before another begins.
