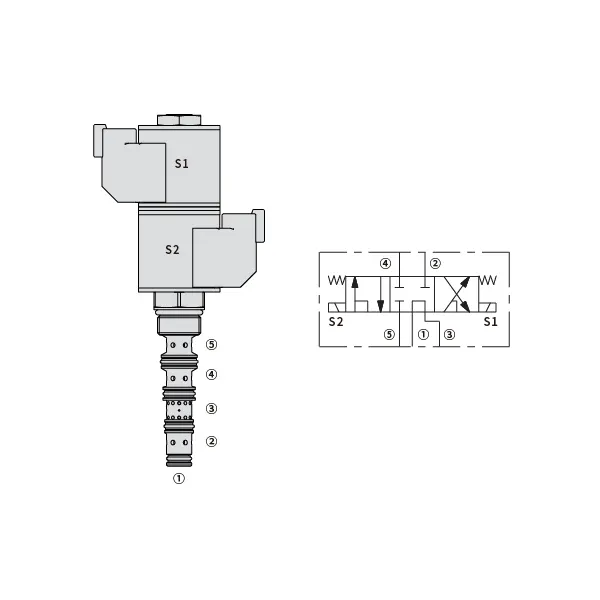

35SD10-58C Solenoid Directional Valve
The 35SD10-58C solenoid directional valve is a cutting-edge component designed to provide precise control over hydraulic systems. With its advanced features and robust construction, this valve ensures optimal fluid direction and control, making it an indispensable tool for a wide range of applications. Whether you’re operating heavy machinery, managing industrial equipment, or overseeing complex hydraulic systems, the 35SD10-58C solenoid directional valve delivers the precision and performance you need.
The 35SD10-58C solenoid directional valve is a reliable and high-performance component for achieving precise control and efficient fluid direction in hydraulic systems. With its exceptional control capabilities, enhanced durability, efficient fluid direction, and versatility, this valve delivers the reliability and performance needed across a range of applications. By following the recommended usage methods and maintenance practices, you can ensure optimal performance and extend the lifespan of your 35SD10-58C solenoid directional valve. Invest in this high-quality valve today and experience enhanced control and reliability in your hydraulic system.
35SD10-58C Solenoid Directional Valve Characteristics:
- Precise Control: The 35SD10-58C solenoid directional valve offers exceptional control over the flow of hydraulic fluid. Its innovative design enables rapid and accurate switching between flow paths, ensuring precise control over hydraulic actuators and other components. With this level of control, you can achieve optimal performance and efficiency in your hydraulic system.
- Enhanced Durability: This valve is built to withstand demanding and prolonged use. Its sturdy construction and high-quality materials ensure durability and reliability, even in harsh operating environments. With the 35SD10-58C solenoid directional valve, you can rely on consistent performance and minimal maintenance requirements.
- Efficient Fluid Direction: The valve efficiently directs the flow of hydraulic fluid, ensuring smooth and controlled movement. Directing the fluid to the desired path minimizes energy loss, reduces system inefficiencies, and enhances overall productivity. The efficient fluid direction provided by the 35SD10-58C solenoid directional valve translates into cost savings and improved performance.
- Versatility: The 35SD10-58C solenoid directional valve is highly versatile and suitable for various applications. This valve seamlessly adapts to different requirements, whether used in construction equipment, material handling machinery, or industrial automation systems. Its versatility allows it to integrate smoothly into various hydraulic systems, providing optimal control and performance.
35SD10-58C Solenoid Directional Valve Parameter:
|Rated pressure||240 bar (3500 psi)|
|Peak flow||19 L/min (5 gpm)|
|Fluid||Mineral-based or synthetics with lubricating properties|
|Fluid temperature range ℃||-54 to 107 ℃ (Polyurethane seals)|
|-40 to 100 ℃ (Buna N seals)|
|-26 to 204 ℃ (Fluorocarbon seals)|
|Viscosity range||7.4 to 420 mm2/s|
|Degree of contamination||The minimum pollution level is ISO4406 level 18/16/13, and level 15/13/11 is recommended to prolong the service life|
|Internal Leakage||≤ 328 mL/min@240 bar|
|Coil Duty Rating||Continuous from 85% to 115% of nominal voltage|
|Initial Coil Current Draw at 20℃||E-coil||1.7A at 12VDC; 0.85A at 24VDC|
|D-coil||1.67A at 12VDC; 0.83A at 24VDC|
|Minimum pull-in voltage||85% of nominal at 207 bar|
35SD10-58C Solenoid Directional Valve Advantages:
• Continuous-duty rated coil
• Cartridges are voltage interchangeable
• Optional waterproof E-Coils rated up to IP69K
• Efficient wet-armature construction
• Industry common cavity
• Hardened parts for long life
Usage Method Of 35SD10-58C Solenoid Directional Valve :
Using the 35SD10-58C solenoid directional valve is straightforward and follows these general steps:
- Mounting: Securely mount the valve in the designated location within your hydraulic system, ensuring proper alignment and connection to the hydraulic lines. Follow the manufacturer’s guidelines for specific mounting instructions.
- Electrical Connection: Following the manufacturer’s electrical wiring diagram, connect the solenoid valve to the appropriate power source. Ensure correct polarity and establish secure electrical connections for seamless valve operation.
- Fluid Connections: Connect the hydraulic lines to the valve ports, ensuring proper alignment and tight connections. Use high-quality fittings and seals to prevent leaks and ensure efficient fluid transfer.
- Valve Operation: Control the operation of the 35SD10-58C solenoid directional valve using electrical control signals. Send the appropriate electrical signals to the solenoid to switch the valve position, directing the flow of hydraulic fluid as needed.
