Pin Joint Two Stage Telescopic Hydraulic Cylinder
The pin joint two-stage telescopic hydraulic cylinder is a cutting-edge hydraulic element designed to provide efficient and reliable power transmission for a variety of industrial applications. With its innovative design, superior performance, and versatility, this hydraulic cylinder offers precise control and increased productivity. Whether used in construction, agriculture, or material handling, pin jonint two-stage telescopic hydraulic cylinders are designed to optimize the hydraulic operation and provide superior results.
CX series compact cylinders are used for clamping cylinders. Its installation is small. Our factory has advanced hydraulic equipment, including a vertical and horizontal machining center and medium and large hydraulic cylinders. Thin cylinder production technology is excellent.

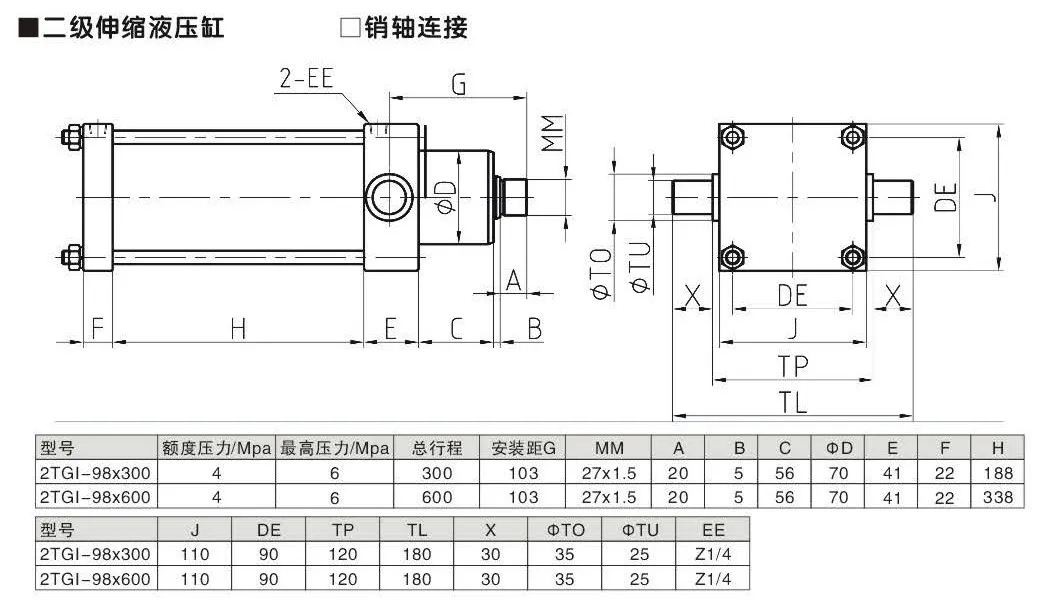

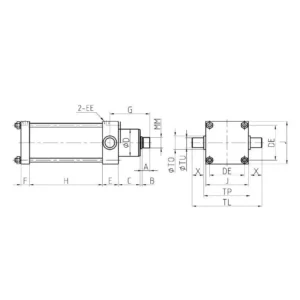

Pin Joint Two Stage Telescopic Hydraulic Cylinder Parameter:
Pin Joint Two Stage Telescopic Hydraulic Cylinder Key Features and Benefits:
- Two-Stage Telescopic Design:
- The Pin Joint Two Stage Telescopic Hydraulic Cylinder features a two-stage telescopic design that increases stroke length while maintaining a compact retracted size.
- This design provides flexibility in hydraulic applications where extended reach is required without sacrificing space constraints.
- Pin Joint Construction:
- The cylinder incorporates pin joint construction, which enables smooth and synchronized movement of the telescopic stages.
- The pin joint mechanism ensures operation stability, precision, and excellent load-bearing capacity.
- Precise Control:
- This hydraulic cylinder offers exceptional control over extension and retraction, allowing precise positioning and efficient operations.
- The precise control mechanism ensures smooth and controlled movement, enhancing overall productivity.
- High Load-Bearing Capacity:
- The Pin Joint Two Stage Telescopic Hydraulic Cylinder is engineered to handle heavy loads and demanding industrial applications.
- It provides excellent load-bearing capacity, making it suitable for lifting, pushing, or pulling substantial weights.
Pin Joint Two Stage Telescopic Hydraulic Cylinder Usage Method:
- Mounting and Installation:
- Determine the appropriate installation location for the pin joint secondary telescopic hydraulic cylinder based on the specific requirements of your equipment or machine.
- Ensure that the mounting surface is strong, level, and can safely support the weight and load of the cylinder.
- Hydraulic System Connection:
- Connect the hydraulic cylinder to the hydraulic system using a compatible hydraulic hose or pipe.
- Align and secure the connections properly to prevent leaks and ensure optimal performance.
- Operating the Cylinder:
- Start the hydraulic system and start the movement of the two-stage telescopic hydraulic cylinder of the pin joint.
- The hydraulic control system is used to precisely control the extension of the cylinder and improve the operating efficiency.
