Tagumine kate Ristkülikukujuline äärik Nelja vardaga hüdrosilinder

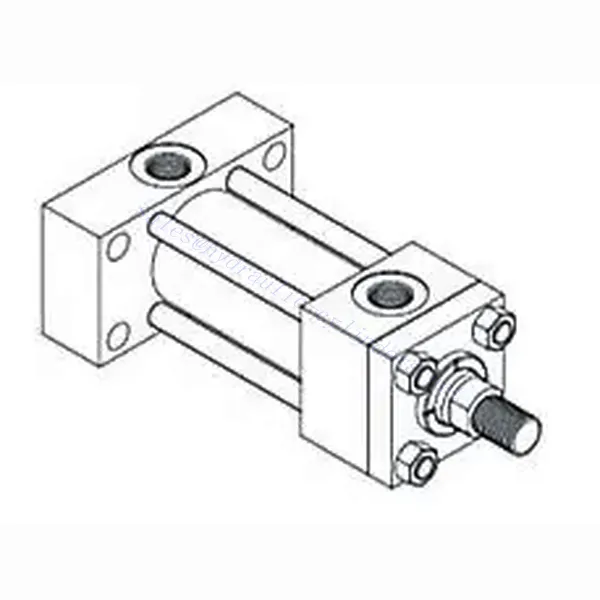

The rear cover rectangular flange four rod hydraulic cylinder is a versatile and robust four rod hydraulic cylinder designed to provide reliable and efficient linear motion in various industrial applications. With its unique design and exceptional performance, this four rod hydraulic cylinder offers outstanding power and precision, making it an ideal choice for demanding hydraulic systems.

Essential Characteristics Of Four Rod Hydraulic Cylinder:

High Strength Construction:

1. • The four rod hydraulic cylinder has a robust construction and uses high-quality materials to ensure durable and long-lasting performance.
   • It can withstand heavy loads and harsh operating conditions and is suitable for demanding industrial applications.

Rectangular Flange Design:

1. • The back cover of this four rod hydraulic cylinder is fitted with a rectangular flange, providing a safe and stable installation option.
   • Flanges are designed for easy installation and calibration, ensuring an accurate fit within the hydraulic system.

Four Rod Configuration:

1. • The four rod hydraulic cylinder adopts a four-bar design to improve stability and load-carrying capacity.
   • The four rods evenly distribute the load, reducing the stress on each component and ensuring smooth and balanced operation.

Exceptional Performance:

• • The cylinders offer high performance and provide accurate and reliable linear motion control.
  • It provides superior force output and stroke length, allowing efficient operation in a variety of applications.

Rear Cover Rectangular Flange Four Rod Hydraulic Cylinder Parameter:

Tagumine kate Ristkülikukujuline äärik Nelja vardaga hüdrosilinder Kasutamise meetod:

Mounting:

1. • Determine the proper position of the hydraulic cylinder in the hydraulic system.
   • Ensure the mounting surface is clean and free from any debris or contaminants.
   • Place the rectangular flange flush with the mounting face and secure it with appropriate bolts or fasteners.

Hydraulic Connections:

1. • Connect the hydraulic supply line to the cylinder port to ensure proper seal and prevent leakage.
   • Follow the manufacturer’s recommendations for the type of hydraulic oil and fill the system accordingly.

Operation:

• • Start the hydraulic system and use the hydraulic control valve to control the cylinder movement.
  • Adjust flow and pressure Settings to achieve the desired speed and force output.
  • Monitor four rod hydraulic cylinder operation for any anomalies or signs of failure.

Tagumine kate Ristkülikukujuline äärik Nelja vardaga hüdrosilinder Maintenance:

Regular Inspection:

1. • Perform a routine visual inspection to check for any signs of wear, leakage, or damage.
   • Check seals, tie rods, and cylinder blocks for abnormalities and replace worn or damaged parts promptly.

Lubrication:

1. • Follow the manufacturer’s lubrication interval guidelines and use the recommended lubricant to ensure smooth operation.
   • Lubricate rods and seals to prevent friction and extend cylinder life.

Seal Replacement:

• • Over time, the seals may wear out and require replacement.
  • When replacing seals, ensure they are of the correct size and type recommended by the manufacturer.
  • When replacing the seal, remove and reassemble the cylinder according to the correct procedure.

How To Control Hydraulic Cylinder Speed？

Controlling the speed of a hydraulic cylinder is essential to ensure safe and efficient operation in various applications. Here are some methods to control the speed of a hydraulic cylinder:

1. Flow Control Valve:

• The most common method to control a hydraulic cylinder’s speed is using a flow control valve.
• A flow control valve regulates the amount of hydraulic fluid flowing into and out of the cylinder, thereby controlling the speed of the cylinder’s movement.
• Flow control valves are available in various types, including needle valves, adjustable orifice valves, and throttle valves.
• By adjusting the opening of the flow control valve, you can regulate the flow rate of the hydraulic fluid and, consequently, the speed of the cylinder.

2. Proportional Control Valves:

• Proportional control valves provide more precise speed control than standard flow control valves.
• These valves allow for continuous flow rate adjustment, providing finer control over the cylinder’s speed.
• Proportional control valves are often used in applications where precise positioning and speed control are critical, such as in robotics or automation systems.

3. Pressure Control:

• The speed of a hydraulic cylinder can also be indirectly controlled by adjusting the system’s pressure.
• Increasing the pressure will result in faster cylinder movement while reducing the pressure will slow it down.
• Pressure control can be achieved by using a pressure relief valve or a pressure-compensated flow control valve in the hydraulic system.

4. Load Control:

• The load on the hydraulic cylinder can affect its speed of operation.
• Increasing the load will generally slow down the cylinder due to the increased resistance.
• To control the speed under different load conditions, you can incorporate load-sensing valves or load-compensated flow control valves into the hydraulic system.
• These valves adjust the flow rate based on the load, ensuring consistent speed regardless of the load variation.

5. Cylinder Size and Design:

• The size and design of the hydraulic cylinder itself can influence its speed characteristics.
• A larger cylinder diameter generally provides higher speed due to the larger piston area, while a smaller diameter cylinder will result in slower speed.
• The cylinder’s design, including the diameter of the ports and the internal passages, can also impact the speed of the cylinder’s movement.
• When selecting a hydraulic cylinder, consider the desired speed requirements and consult the manufacturer’s specifications to choose an appropriate size and design.

Tehase võimekus ja suutlikkus:

(1) Kokkupanek

Meil on esmaklassiline sõltumatu teadus- ja arendustegevuse montaažiplatvorm. Hüdrosilindrite tootmistöökojas on neli poolautomaatset tõstesilindrite koosteliini ja üks automaatne kallutussilindrite koosteliin, mille kavandatud aastane tootmisvõimsus on 1 miljon tükki. Spetsiaalsete silindrite töökoda on varustatud erinevate spetsifikatsioonidega poolautomaatse puhastusmontaažisüsteemiga, mille kavandatud aastane tootmisvõimsus on 200 000 ja mis on varustatud kuulsate CNC-töötlemisseadmete, mehaanilise töötlemise keskuse, suure täpsusega silindrite töötlemise eriseadmete, robotkeevitusmasina, automaatse puhastusmasina, automaatse silindri kokkupanemise masina ja automaatse värvimise tootmisliiniga. Olemasolevad kriitilised seadmed rohkem kui 300 komplekti (komplekti). Seadmete ressursside optimaalne jaotamine ja tõhus kasutamine tagavad toodete täpsusnõuded ja vastavad toodete kvaliteedinõuetele.

(2) Töötlemine

Töödeldav töökoda on varustatud kohandatud kallutatud rööpse treipingi keskuse, mehaanilise keskuse, kiire lihvimismasina, keevitusroboti ja muude seotud seadmetega, mis suudavad töödelda silindritorusid, mille maksimaalne siseläbimõõt on 400 mm ja maksimaalne pikkus on 6 meetrit.

(3) Keevitamine

(4) Värvimine ja katmine

Väikese ja keskmise suurusega silindri automaatse veepõhise värvipinnakattega liinide abil, et saavutada automaatne robotlaadimine ja mahalaadimine ning automaatne pihustamine, projekteerimisvõimsus 4000 tükki vahetuse kohta;
Meil on ka poolautomaatne suurte balloonide värvimise tootmisliin, mis töötab jõukettaga ja mille projekteerimisvõimsus on 60 kasti ühe vahetuse kohta.

(5) Testimine

Meil on esmaklassilised kontrolliseadmed ja katsestendid, et tagada silindri jõudlus vastavus nõuetele.

Me oleme üks parimaid kergeid nelja vardaga hüdrosilindrite tootjaid. Me saame pakkuda terviklikku kerget nelja vardaga hüdrosilindri varu. Pakume ka vastavaid põllumajanduslikud käigukastid. Oleme eksportinud oma tooteid klientidele üle kogu maailma ja teeninud hea maine tänu meie suurepärasele tootekvaliteedile ja müügijärgsele teenindusele. Me tervitame soojalt kliente nii kodus kui ka välismaal, et võtta meiega ühendust, et pidada läbirääkimisi äri, vahetada teavet ja teha meiega koostööd!
