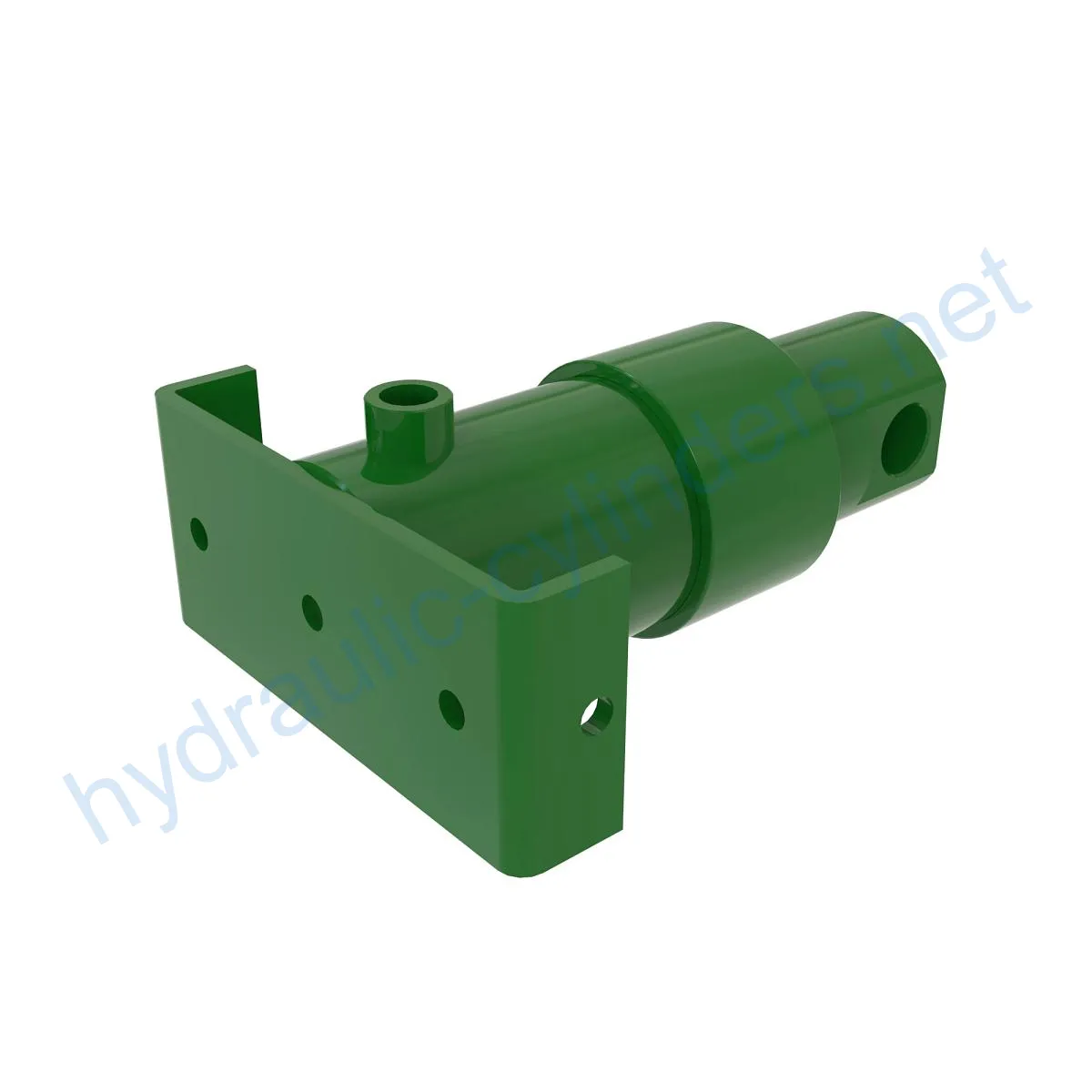

Replacement Of AFH214153 Top Tensioning Hydraulic Cylinder

This hydraulic cylinder is a replacement for the AFH214153 top tensioning hydraulic cylinder. It is designed to provide top tensioning capabilities for various applications. This cylinder is an essential component in maintaining the performance and safety of equipment.

Specifications

• Weight: 22.34 lb
• Height: 4.5 in
• Width: 7.4 in
• Length: 9.6 in

Models

• L341
• L341R
• L341R HIGH-DENSITY

Features

• Improved Equipment Performance: Replacing damaged or worn hydraulic cylinders can restore the normal operation of equipment, ensuring its performance in various applications.
• Enhanced Safety: Regularly replacing hydraulic cylinders can reduce safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.
• Overload Protection: New cylinder designs often incorporate better overload protection mechanisms, improving safety.
• Quick Installation: Modern hydraulic cylinders are designed to be easy to install and replace, minimizing downtime.
• Standardized Components: Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

We are capable of producing this product, and our cylinders are perfectly capable of replacing the ones mentioned above.

Applications

Here are three examples of the applications of this hydraulic cylinder:

Excavators

In excavators, the hydraulic cylinder on the boom or bucket may become damaged due to prolonged use or overload. Replacing it is necessary to restore normal operation.

Cranes

The hydraulic cylinders on the lifting arms of cranes are prone to wear during frequent lifting and lowering processes. Regular replacement is required to ensure safety.

Tractors

The hydraulic cylinder on the front loader of a tractor may develop leaks or performance issues due to continuous lifting and tilting operations. Replacement is needed to maintain optimal performance.

Maintenance Tasks

Regular maintenance tasks for hydraulic cylinders include:

1. Periodic inspections
2. Proper lubrication
3. Seal replacements
4. Calibration checks

It is important to install, lubricate, and adjust the cylinders correctly. Providing proper alignment guidance during installation and recommending the use of appropriate mounting brackets to secure the cylinders can prolong their lifespan. We offer inspection, repair, and replacement services to ensure the longevity of the cylinders.

Safety Considerations and Environmental Factors

When using hydraulic cylinders, it is crucial to follow safety measures to prevent accidents and ensure the well-being of personnel. Additionally, considering environmental factors while using these cylinders is equally important in maintaining a sustainable operation.

Troubleshooting and Common Issues

Here are some common issues and troubleshooting tips:

Issue 1: Cylinder Leakage

Solution: Check the seals and replace if necessary. Ensure proper lubrication and tightening of connections.

Issue 2: Cylinder Slow Operation

Solution: Check for fluid contamination or low fluid levels. Clean or replace the fluid and ensure proper lubrication.

Issue 3: Cylinder Misalignment

Solution: Inspect the mounting brackets and connections for any misalignments. Adjust or replace as needed to ensure proper alignment.

Preventive measures can significantly reduce potential problems. Regular inspections, maintenance, and adherence to recommended practices are essential in minimizing downtime and maximizing the lifespan of the hydraulic cylinders.

Design Considerations and Selection Criteria

When it comes to the design and selection of hydraulic cylinders, several factors should be considered:

• Load-bearing capacity
• Sealing effectiveness
• Durability
• Safety features
• Maintainability

Each of these factors plays a crucial role in ensuring the optimal performance and longevity of the hydraulic cylinders.

Sealing and Lubrication

Hydraulic cylinders utilize various sealing components such as piston seals, rod seals, etc. These seals are made from wear-resistant materials like polyurethane and nitrile rubber. The cylinder bodies and threaded ends undergo meticulous surface treatment to enhance wear resistance. Regular lubrication with the appropriate hydraulic oil is necessary to ensure smooth operation and minimize friction.

Regular inspections and preventive maintenance measures are recommended to maximize the lifespan of hydraulic cylinders.

Installation Guide

Proper installation is crucial for the optimal performance and safety of hydraulic cylinders. Here are some guidelines:

• Ensure correct alignment of the cylinder.
• Use appropriate mounting brackets to secure the cylinder.
• Follow recommended inspection, repair, and replacement procedures.
• Provide replacement parts and rebuilding services.
• Share tips to enhance the lifespan of the cylinders.

About Our Company

We are a leading manufacturer and wholesale distributor of hydraulic cylinders, specializing in replacements. Our comprehensive range of products has made us a prominent player in both domestic and international markets.

Our Strengths:

• Professionalism
• International certifications
• Customization services
• State-of-the-art production equipment
• Excellent after-sales service

Author: lyl
