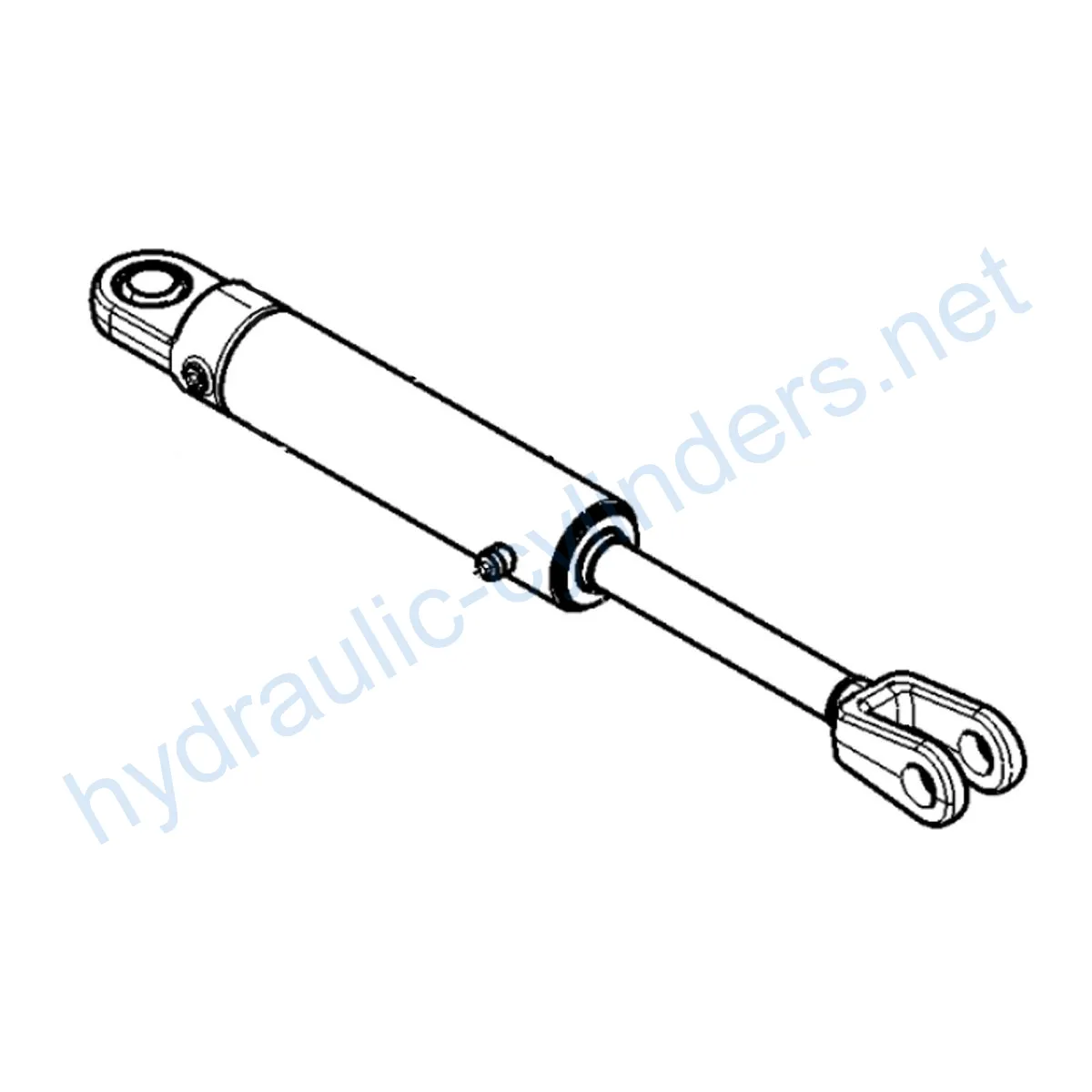

Replacement Of AHC22223 Tilt Hydraulic Cylinder

The Replacement Of AHC22223 Tilt Hydraulic Cylinder is a hydraulic cylinder used in various models including 410R, 412R, 612R, and 616R. It weighs 60.637 lb and has a height of 5.8 in and length of 34 in. This hydraulic cylinder is an important component in heavy equipment as it is responsible for controlling the movement of the arm or bucket.

Specifications and Models

The Replacement Of AHC22223 Tilt Hydraulic Cylinder is designed to fit several models and is manufactured to meet the highest standards of quality. Its specifications include a weight of 60.637 lb, a height of 5.8 in, and a length of 34 in. This hydraulic cylinder is compatible with 410R, 412R, 612R, and 616R models, ensuring that it is suitable for a wide range of heavy equipment applications.

Features

Improved Equipment Performance

Replacing a damaged or worn hydraulic cylinder can restore the normal operation of the equipment and ensure its performance in various applications.

Enhanced Safety

Regularly replacing hydraulic cylinders can reduce the safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.

Overload Protection

New cylinder designs typically consider better overload protection mechanisms, improving safety.

Quick Installation

Modern hydraulic cylinder designs usually consider easy installation and replacement, reducing downtime.

Standardized Components

Many hydraulic cylinders are standardized products, making it easy to obtain replacement parts in the market.

Applications

The Replacement Of AHC22223 Tilt Hydraulic Cylinder is used in various heavy equipment applications such as:

Excavators

In excavators, the hydraulic cylinder in the arm or bucket may be damaged due to long-term use or overload and needs replacement to restore normal operation.

Cranes

The crane’s boom hydraulic cylinder is prone to wear and tear during frequent lifting and lowering and needs regular replacement to ensure safety.

Tractors

The front loader hydraulic cylinder of the tractor may leak or have decreased performance due to continuous lifting and tilting, requiring replacement.

Harvesters

In the harvesting process, the hydraulic system is subjected to high pressure, and the cylinder may be damaged due to fatigue. Therefore, it needs to be replaced in a timely manner to maintain work efficiency.

Automated Production Lines

Hydraulic cylinders are used to control robotic arms and other automation equipment. If the cylinder fails, it can affect production efficiency and needs to be replaced immediately.

Die Casting Machines

The hydraulic cylinder in die-casting machines may experience performance degradation in high-pressure and high-temperature environments. Regular replacement can ensure product quality.

Mining Equipment

Hydraulic cylinders are used to lift and move heavy objects in mining equipment. Due to the harsh working environment, they need to be inspected and replaced regularly to avoid equipment failure.

Bulldozers

The wear and tear of the hydraulic cylinder on the bulldozer’s push arm can lead to a decrease in pushing ability and therefore needs to be replaced in a timely manner to maintain operational efficiency.

Karbantartás

Regular maintenance is essential to prolong the life of the hydraulic cylinder. Three common maintenance tasks include:

Regular Inspection

The hydraulic cylinder needs to be inspected regularly to detect any wear, leaks, or other damage in time. This can prevent potential problems and reduce downtime.

Proper Lubrication

The hydraulic cylinder needs to be lubricated regularly to reduce friction and prevent corrosion. Adequate lubrication helps the cylinder operate efficiently.

Seal Replacement and Calibration Check

The seals on the hydraulic cylinder need to be replaced regularly to prevent leaks. A calibration check also needs to be performed to ensure the cylinder is operating correctly.

Proper installation, lubrication, and adjustment are all important to ensure the hydraulic cylinder functions correctly. During installation, it is recommended to provide guidance on aligning the cylinder properly and using appropriate support brackets to secure the cylinder. We recommend using our inspection, repair, and replacement procedures to extend the life of the hydraulic cylinder.

Safety Considerations and Environmental Factors

Safety measures are crucial when handling the hydraulic cylinder. When using the cylinder, it is important to follow the manufacturer’s safety guidelines. It is also important to consider environmental factors such as temperature, humidity, and corrosive substances that may affect the performance of the hydraulic cylinder. Using appropriate seals, lubricants, and maintenance procedures can protect the cylinder from environmental damage.

Fault Diagnosis and Common Problems

Common problems with the hydraulic cylinder include leaks, wear, and mechanical failure. If the cylinder is leaking, it may be due to damaged seals or corrosion. If wear is detected, it may be due to friction or improper lubrication. If mechanical failure occurs, it may be due to damage to the piston, rod, or other internal components. To diagnose and solve these problems, it is recommended to seek the assistance of a qualified technician.

Design Considerations and Selection Criteria

When selecting a hydraulic cylinder, it is important to consider its load-bearing capacity, sealing performance, durability, safety, and maintainability. The Replacement Of AHC22223 Tilt Hydraulic Cylinder is designed to meet these requirements and is manufactured to the highest standards of quality. It uses various seals such as piston seals and rod seals made of wear-resistant materials, and the cylinder body and threaded end surfaces are finely processed to improve wear resistance. Regular maintenance is also important to extend the life of the cylinder.

Company Introduction

We are a leading manufacturer and wholesaler of hydraulic cylinders, with a wide range of products and certifications. Our company is committed to providing high-quality replacement hydraulic cylinders for various heavy equipment models. We offer customized services, advanced production equipment, and comprehensive after-sales service to ensure customer satisfaction.

We pride ourselves on our professionalism and expertise in the hydraulic cylinder industry. All our products are international quality certified and tested to ensure they meet the highest standards of quality and safety. We also offer customized services to meet the specific needs of our customers. Our production equipment is advanced and efficient, reducing production time while ensuring product quality. Our after-sales service includes inspection, repair, and replacement services to extend the life of the hydraulic cylinder.

Thank you for choosing our Replacement Of AHC22223 Tilt Hydraulic Cylinder. If you have any questions or concerns, please do not hesitate to contact us.
