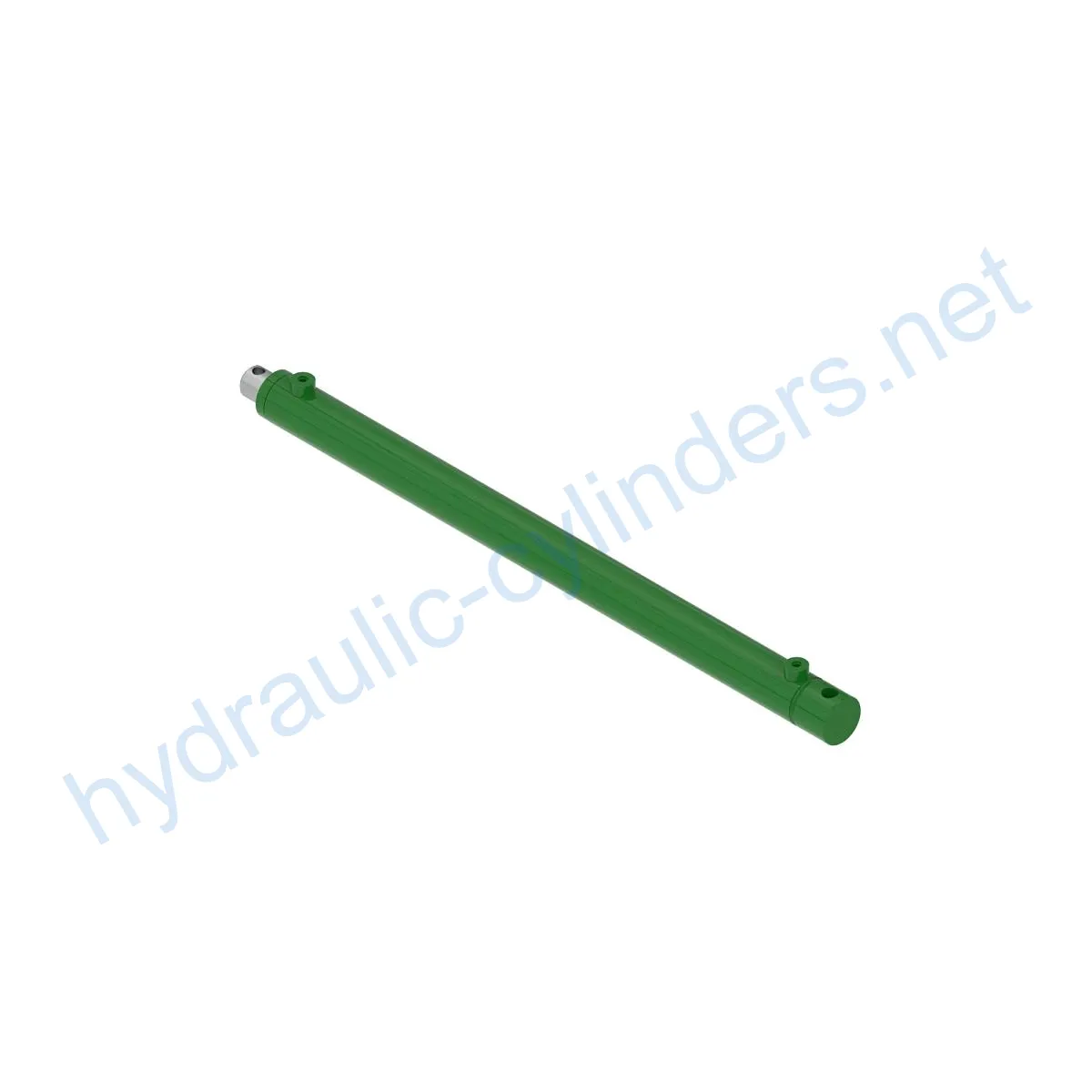

Replacement Of AN278544 Hydraulic Cylinder

Introduction

The Replacement of AN278544 Hydraulic Cylinder is a vital component used in various heavy-duty equipment, including excavators, cranes, tractors, and harvesters. This cylinder is responsible for powering hydraulic machines, which allows for smooth and efficient movement of equipment.

Specifications and Model

The Replacement of AN278544 Hydraulic Cylinder has a weight of 65 lb and dimensions of 3.25 in (height), 4 in (width), and 48.25 in (length). It has a volume of 4.75 gal and is compatible with model 7660 9996.

Key Features

Improved Equipment Performance

Replacing damaged or worn hydraulic cylinders can restore equipment’s normal operating ability, ensuring its performance in various applications.

Enhanced Safety

Regularly replacing hydraulic cylinders can reduce safety hazards caused by cylinder failure, ensuring the safety of operators and equipment.

Overload Protection

New cylinder designs typically consider better overload protection mechanisms, enhancing safety.

Quick Installation

Modern hydraulic cylinder designs usually consider ease of installation and replacement, reducing downtime.

Standardized Parts

Many hydraulic cylinders are standardized products, making it easy to obtain replacement parts in the market.

Applications

The Replacement of AN278544 Hydraulic Cylinder is used in a wide range of applications, including:

• Excavators: Hydraulic cylinders on excavator arms or buckets may need replacement due to long-term use or overload.
• Cranes: Hydraulic cylinders on crane booms are prone to wear during frequent lifting and lowering processes, requiring regular replacement to ensure safety.
• Tractors: Front-end loader hydraulic cylinders on tractors may have leaks or performance degradation due to continuous lifting and tilting operations, requiring replacement.
• Harvesters: The hydraulic system of harvesters experiences high pressure during harvesting, and cylinders may be damaged due to fatigue, requiring timely replacement to maintain work efficiency.
• Automation production lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. Cylinder failure can affect production efficiency and requires immediate replacement.
• Die-casting machines: Hydraulic cylinders may experience performance degradation in high-pressure and high-temperature environments. Regular replacement can ensure product quality.
• Mining equipment: Hydraulic cylinders are used to lift and move heavy loads in mining equipment. Due to harsh working conditions, regular inspection and replacement are necessary to avoid equipment failure.
• Bulldozers: Worn hydraulic cylinders on bulldozer bulldozer blades can lead to a decrease in pushing ability, requiring timely replacement to maintain work efficiency.

Maintenance Tasks

Regular maintenance of hydraulic cylinders can ensure their longevity and smooth operation. Common maintenance tasks include:

• Regular Inspection: Periodic inspections can detect potential problems early and prevent cylinder failure.
• Lubrication: Proper lubrication can prevent wear and tear on cylinder components.
• Seal Replacement: Replacing seals can prevent leaks and extend the life of hydraulic cylinders.
• Calibration Check: Ensuring proper calibration can maintain cylinder efficiency.

Safety Considerations and Environmental Factors

When using hydraulic cylinders, it is essential to consider safety measures such as wearing protective gear and following proper handling procedures. Also, proper disposal of used cylinders is necessary to avoid environmental pollution.

Troubleshooting and Common Problems

Common problems with hydraulic cylinders include leaks, insufficient operation, and failure to extend or retract. To diagnose and solve these problems, it is essential to inspect and replace seals, check and replace worn components, and ensure proper calibration and lubrication of cylinder components.

Product Design and Selection Criteria

Carrying Capacity

The carrying capacity of hydraulic cylinders is an essential consideration in designing and selecting products. Proper carrying capacity can ensure efficient operation and reduce the risk of cylinder failure.

Sealing and Durability

Sealing and durability are critical factors in ensuring the longevity of hydraulic cylinders. High-quality materials and advanced manufacturing techniques can enhance sealing and durability, reducing the need for frequent replacements.

Safety and Maintenance

Safety and maintenance are key considerations in designing hydraulic cylinders. Proper design can ensure smooth operation and reduce the risk of cylinder failure. Additionally, proper maintenance can extend cylinder life and ensure efficiency.

Installation Guide

Proper installation of hydraulic cylinders is essential to ensure smooth operation and reduce the risk of failure. The following guidelines should be followed when installing hydraulic cylinders:

• Ensure proper cylinder alignment
• Provide proper support for the cylinder during installation
• Follow recommended installation, inspection, repair, and replacement procedures
• Provide rebuilding services and replacement parts to extend cylinder life

About Our Company

We are a leading manufacturer and wholesale distributor of hydraulic cylinders for domestic and international markets. Our company offers a wide range of high-quality products and services, including customized solutions, international certification, advanced production equipment, and exceptional after-sales service.
