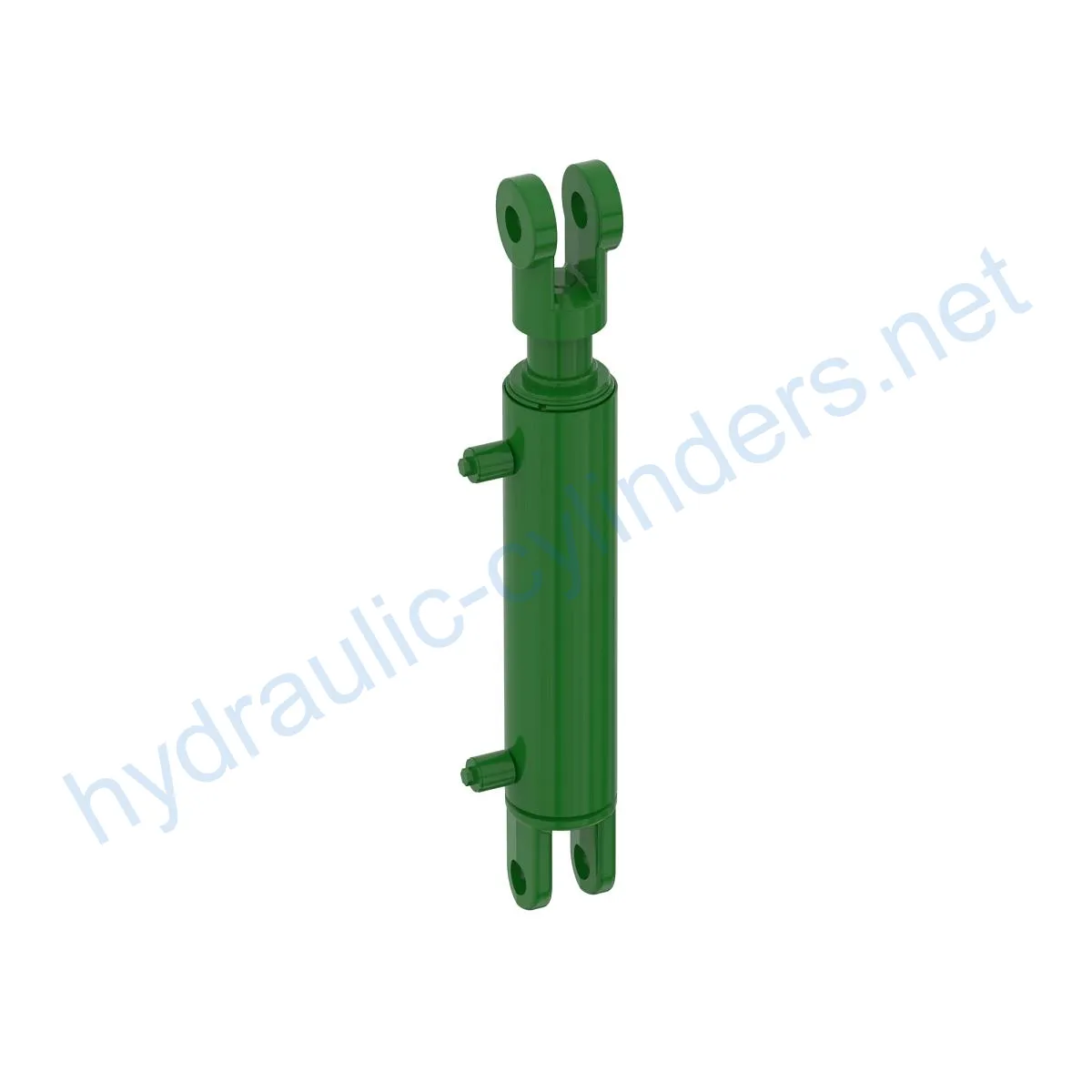

Replacement Of AHC18574 Hydraulic Cylinder

Introduzione

The Replacement Of AHC18574 Hydraulic Cylinder is a vital component used in various machinery, including models 1895 N530C, N536C, N540C, N542C, and N560F. This hydraulic cylinder plays a crucial role in ensuring the smooth operation of equipment. With a weight of 26 lb and dimensions of 3.3 in (height), 4.5 in (width), and 22.5 in (length), it is designed to meet the highest standards of performance and durability.

Specifiche e modelli

Weight: 26 lb
Altezza: 3,3 pollici
Larghezza: 4,5 pollici
Lunghezza: 22,5 pollici

Modelli compatibili:

• 1895 N530C
• 1895 N536C
• 1895 N540C
• 1895 N542C
• 1895 N560F

Caratteristiche

• Prestazioni migliorate dell'attrezzatura: la sostituzione dei cilindri idraulici danneggiati o usurati può ripristinare le normali capacità operative dell'attrezzatura, garantendo prestazioni ottimali in varie applicazioni.
• Maggiore sicurezza: la sostituzione regolare dei cilindri idraulici riduce i rischi per la sicurezza causati da guasti ai cilindri, garantendo la sicurezza sia degli operatori che delle attrezzature.
• Protezione da sovraccarico: la progettazione di nuovi cilindri spesso include meccanismi di protezione da sovraccarico più efficaci, migliorando la sicurezza durante il funzionamento.
• Installazione rapida: i moderni cilindri idraulici sono progettati per essere facilmente installati e sostituiti, riducendo al minimo i tempi di fermo.
• Componenti standardizzati: molti cilindri idraulici sono standardizzati, il che rende più facile reperire pezzi di ricambio sul mercato.

Applicazioni

The Replacement Of AHC18574 Hydraulic Cylinder finds its applications in various scenarios:

Escavatore

In excavators, the hydraulic cylinder may get damaged due to prolonged use or overload in the arm or bucket. Replacing it is essential to restore normal operation.

Gru

The hydraulic cylinder in a crane’s lifting arm is prone to wear and tear during frequent lifting and lowering operations. Regular replacement ensures safety.

Trattore

The hydraulic cylinder in a tractor’s front-end loader may develop leaks or reduced performance due to continuous lifting and tilting operations. Replacement is necessary in such cases.

Mietitrice

During harvesting, hydraulic systems endure high pressure, and cylinders may get damaged due to fatigue. Timely replacement is crucial to maintain work efficiency.

Linea di produzione automatizzata

Hydraulic cylinders are used to control robotic arms and other automated equipment in production lines. Immediate replacement is necessary in case of cylinder failure to avoid production delays.

Macchina per pressofusione

I cilindri idraulici nelle macchine per pressofusione possono subire un degrado delle prestazioni in ambienti ad alta pressione e alta temperatura. Una sostituzione regolare garantisce la qualità del prodotto.

Attrezzature minerarie

Hydraulic cylinders are used in mining equipment for lifting and moving heavy loads. They require regular inspection and replacement to prevent equipment failure in harsh working conditions.

Bulldozer

In bulldozers, the wear of hydraulic cylinders on the dozer blade can lead to a decrease in pushing ability. Timely replacement is necessary to maintain operational efficiency.

Attività di manutenzione

Le attività di manutenzione ordinaria dei cilindri idraulici includono:

1. Ispezione

Regularly inspecting the cylinder for leaks, damage, and signs of wear is essential to identify potential issues.

2. Lubrificazione

Proper lubrication ensures smooth operation and prevents premature wear of the cylinder. Use recommended hydraulic oil and follow lubrication guidelines.

3. Sostituzione della guarnizione e controlli di calibrazione

Replacing worn seals and performing calibration checks ensures optimal performance and prevents leaks. Follow proper alignment instructions during installation and consider using suitable installation brackets to secure the cylinder.

Considerazioni sulla sicurezza e fattori ambientali

When using hydraulic cylinders, it is crucial to prioritize safety measures. Proper handling, regular maintenance, and adherence to safety protocols are essential to prevent accidents and ensure safe operation. Additionally, considering environmental factors, such as using environmentally friendly hydraulic oils, helps minimize the impact on the ecosystem.

Risoluzione dei problemi e problemi comuni

Common hydraulic cylinder issues include leaks, insufficient force, and erratic movements. Here are some troubleshooting tips and solutions:

Problema: Perdita

Possible Solution: Check and replace damaged seals or connections. Ensure proper installation and tighten fittings.

Problema: forza insufficiente

Possible Solution: Check for low hydraulic fluid levels, clogged filters, or worn-out components. Refill or replace as necessary.

Problema: movimenti irregolari

Possible Solution: Inspect for damaged valves, contaminated fluid, or air in the system. Repair or bleed the system accordingly.

Preventive measures such as regular inspections, proper maintenance, and following recommended operating practices can help minimize potential issues and ensure optimal performance.

Considerazioni progettuali e criteri di selezione

When designing hydraulic cylinders, several factors come into play:

1. Capacità portante

The cylinders’ load-bearing capacity should meet the specific requirements of the machinery to ensure safe and efficient operation.

2. Sealing, Durability, and Safety

Adequate sealing, durability, and safety features are essential to withstand challenging environments and prevent leaks or failures.

3. Maintenance and Repair

Ease of maintenance and repair should be considered, allowing for quick and efficient servicing and minimizing downtime.

Sigillatura e lubrificazione

Hydraulic cylinders incorporate various sealing elements, such as piston seals and rod seals, made of wear-resistant materials like polyurethane and nitrile rubber. Furthermore, the cylinder body and threaded ends undergo meticulous surface treatment to enhance wear resistance. Regular lubrication with the appropriate amount of hydraulic oil ensures smooth operation and extends the cylinder’s lifespan.

Ispezione periodica e manutenzione preventiva

For optimal performance and longevity, the following maintenance measures are recommended:

1. Proper Installation

Ensure correct alignment during installation and follow the provided guidelines for securing the cylinder. Incorrect installation can lead to premature wear and other issues.

2. Lubrificazione e regolazione

Timely lubrication and adjustment of the cylinder play a vital role in maintaining its performance. Follow the recommended lubrication intervals and use the proper type of hydraulic oil.

3. Inspection, Repair, and Replacement

Regularly inspect the cylinder for signs of wear, leaks, or damage. Implement a repair or replacement strategy based on the findings. Timely replacement
