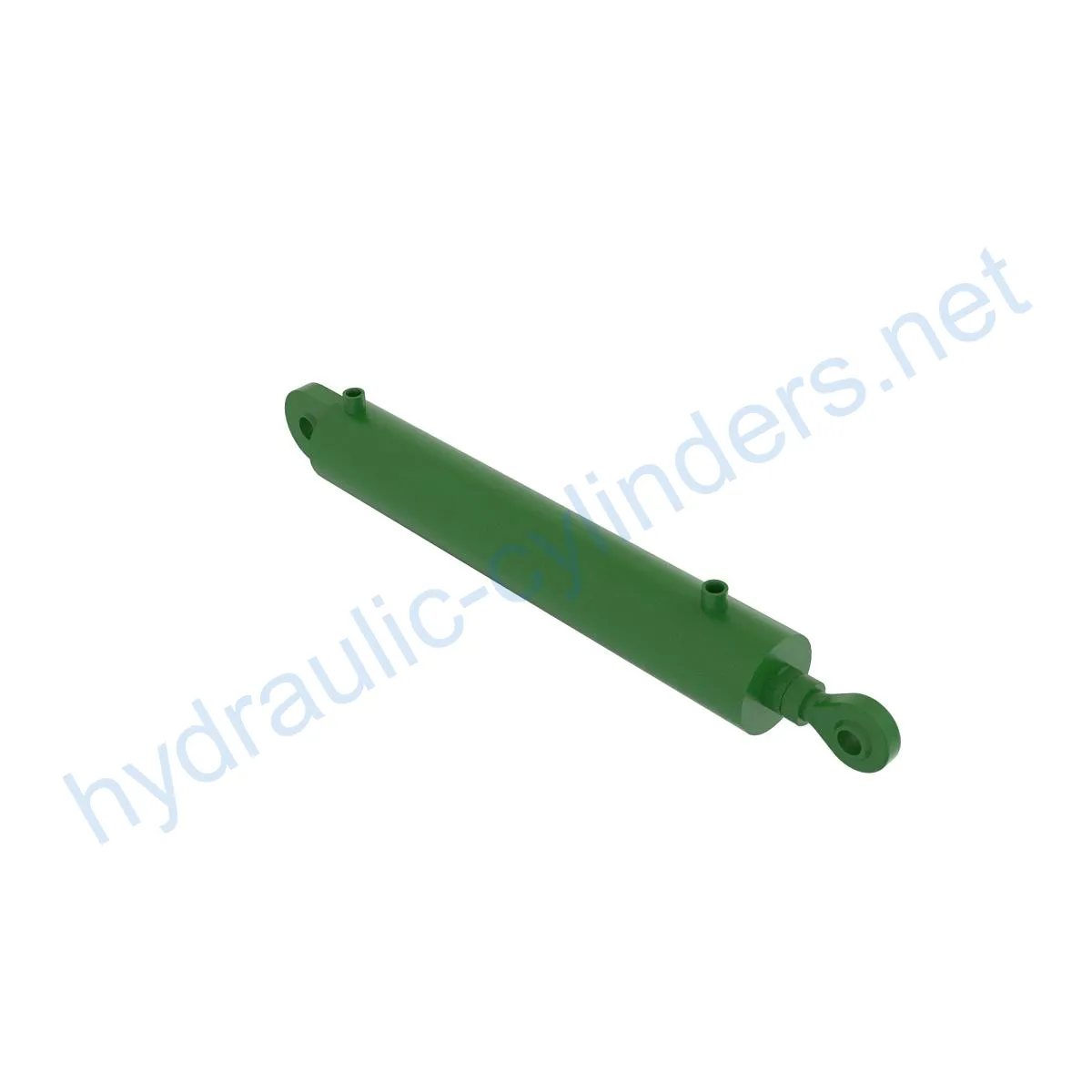

Replacement Of AN401944 Hydraulic Cylinder

This hydraulic cylinder is a replacement for the AN401944 model, designed for use in the 5430I. Weighing 53.111 lb with a height of 5.3 in and length of 34 in, this hydraulic cylinder is an essential component for many types of heavy machinery.

Product Description

A hydraulic cylinder is a mechanical actuator that is used to provide unidirectional force through a unidirectional stroke. It plays a crucial role in the operation of many types of heavy machinery, including excavators, cranes, and tractors.

Specifications and Compatibility

The Replacement Of AN401944 Hydraulic Cylinder weighs 53.111 lb and has a height of 5.3 in and a length of 34 in. It is designed for use in the 5430I.

Product Features

• Improved equipment performance: Replacing damaged or worn hydraulic cylinders can restore the normal operating capability of equipment, ensuring its performance across various applications.
• Enhanced safety: Regularly replacing hydraulic cylinders can reduce safety hazards caused by cylinder failure, ensuring the safety of operators and equipment.
• Overload protection: New cylinder designs typically consider better overload protection mechanisms, improving safety.
• Quick installation: Modern hydraulic cylinders are designed with easy installation and replacement in mind, reducing downtime.
• Standardized components: Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts on the market.

Our company can produce hydraulic cylinders that are a perfect replacement for these cylinders.

Applications

The Replacement Of AN401944 Hydraulic Cylinder is a versatile component used in a wide range of heavy machinery applications, including:

• Excavators: The hydraulic cylinder in an excavator’s arm or bucket may become damaged due to extended use or overload and must be replaced to restore normal operation.
• Cranes: The hydraulic cylinder in a crane’s lifting arm can wear down due to frequent lifting and lowering and must be regularly replaced to ensure safety.
• Tractors: The hydraulic cylinder in a tractor’s front-end loader can experience leaks or reduced performance during constant lifting and tilting operations, requiring replacement.
• Harvesters: The hydraulic system undergoes high pressure during harvesting, causing the cylinder to fatigue and require timely replacement for efficient operation.
• Automated production lines: Hydraulic cylinders are used to control robotic arms and other automation equipment. Cylinder failure can impact production efficiency and should be replaced immediately.
• Die-casting machines: Hydraulic cylinders in die-casting machines may experience reduced performance at high pressures and temperatures, requiring regular replacement to ensure product quality.
• Mining equipment: Hydraulic cylinders are used to lift and move heavy objects in mining equipment. Regular inspection and replacement are required to avoid equipment failure.
• Bulldozers: The wear and tear of the hydraulic cylinder in a bulldozer’s blade can reduce its pushing ability, requiring timely replacement to maintain efficiency.

Maintenance

Regular maintenance is essential for ensuring the longevity and proper functioning of hydraulic cylinders. Here are three common maintenance tasks:

Regular Inspection

Regular inspection of hydraulic cylinders is necessary to ensure that they are functioning correctly. Inspections should include a visual examination of the cylinder’s exterior, a check for leaks, and a visual inspection of the seals and gaskets.

Lubrication

Lubrication is crucial for the proper functioning of hydraulic cylinders. The cylinder should be lubricated at regular intervals with the appropriate oil to ensure smooth operation.

Seal Replacement and Calibration Check

Seals and gaskets should be regularly replaced to prevent leaks. Calibration checks should also be performed to ensure that the cylinder is operating correctly.

During installation, it is important to provide proper guidance on aligning the cylinder. The use of appropriate installation brackets to secure the cylinder is recommended. We also offer recommended inspection, repair, and replacement procedures, as well as parts replacement and rebuilding services to improve the cylinder’s lifespan.

Safety and Environmental Considerations

Safety is a vital consideration when dealing with hydraulic cylinders. Proper measures should be taken when handling cylinders, such as wearing gloves and other protective gear. Environmental considerations should also be taken into account, such as proper disposal of used hydraulic fluid and other materials.

Troubleshooting and Common Problems

Common problems with hydraulic cylinders include leaks, insufficient power, and cylinder drift. To diagnose and fix these issues, the cylinder must be inspected for damage or wear, and the relevant components must be replaced. The use of proper installation techniques and regular maintenance can prevent many of these problems.

Design Considerations and Selection Criteria

When selecting hydraulic cylinders, several key factors should be considered, including load-bearing capacity, sealing, durability, safety, and maintainability. Our cylinders are designed with these factors in mind, ensuring optimal performance and longevity.

Sealing and Lubrication

Sealing and lubrication are critical for ensuring the proper functioning of hydraulic cylinders. Our cylinders use a variety of sealing components, including piston seals and rod seals made from wear-resistant materials, and the cylinder body and thread end surfaces are finely processed to improve wear resistance. Regular lubrication with the appropriate hydraulic oil is also essential for optimal performance.

Regular inspection and preventative maintenance help to address problems before they become serious. Proper alignment during installation and the use of appropriate installation brackets can help to prolong the lifespan of the cylinder and improve its performance over time.

Company Introduction

We are a leading manufacturer and wholesale distributor of hydraulic cylinders, offering a complete range of products for both domestic and international markets. Our company is committed to providing high-quality products and services, including custom design solutions, international certifications, advanced production equipment, and reliable after-sales service.
