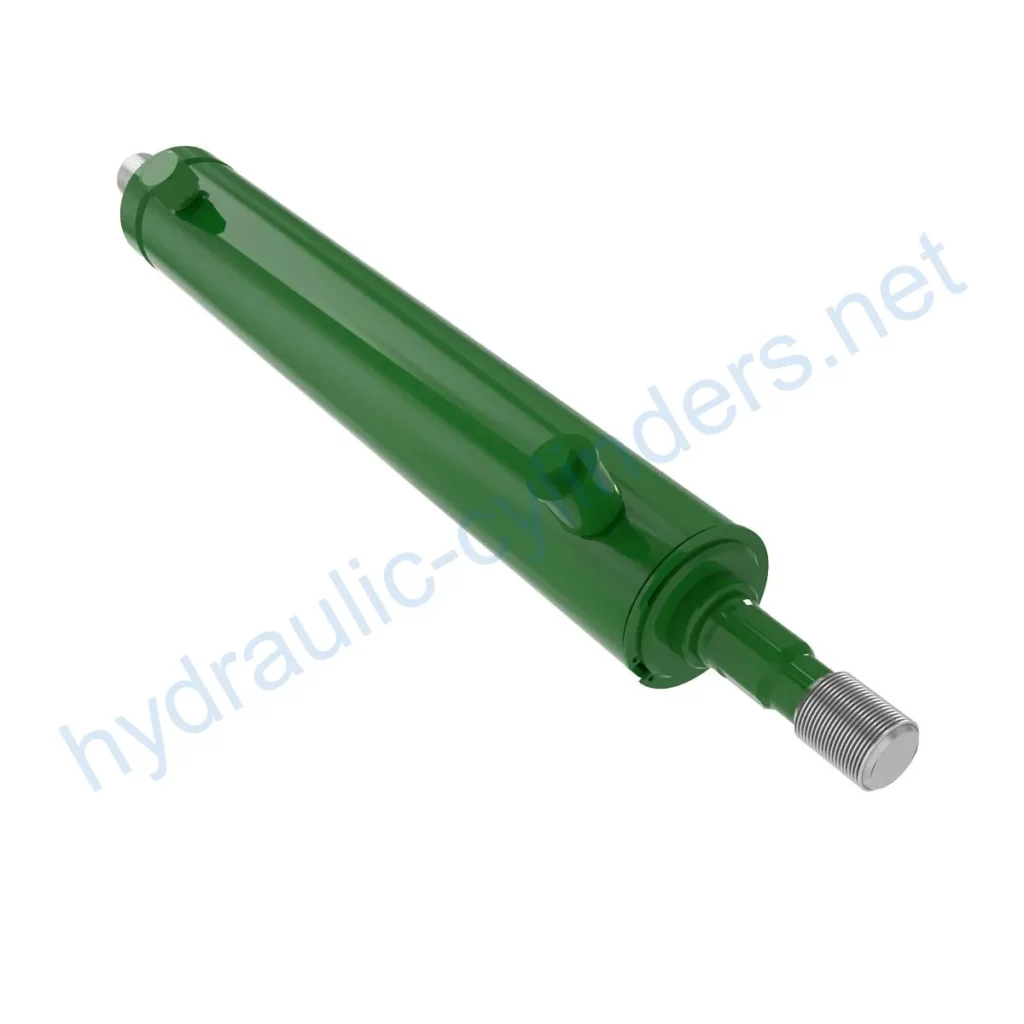

Replacement Of AH166833 Steering Hydraulic Cylinder

The Replacement Of AH166833 Steering Hydraulic Cylinder is a crucial component used in various models such as 9400, 9410, 9450, 9500, 9510, 9540, 9550, 9560, 9580, 9600, 9610, 9640, 9650, 9660, 9660 WTS, 9670, 9680, 9780, C670, CTS, CTS II, T550, T560, T660, and T670 W540, W550, W650, W660.

Product Definition and Purpose

The Replacement Of AH166833 Steering Hydraulic Cylinder is a hydraulic component designed to replace damaged or worn-out cylinders in steering systems. Its primary function is to enable smooth and precise steering control, ensuring optimal performance of the equipment.

Specifications and Models

• Weight: 9.83 lb
• Height: 3 in
• Width: 4 in
• Length: 19.5 in

This replacement hydraulic cylinder is compatible with the following models:

• 9400
• 9410
• 9450
• 9500
• 9510
• 9540
• 9550
• 9560
• 9580
• 9600
• 9610
• 9640
• 9650
• 9660
• 9660 WTS
• 9670
• 9680
• 9780
• C670
• CTS
• CTS II
• T550
• T560
• T660
• T670
• W540
• W550
• W650
• W660

Key Features

• Improved Equipment Performance: Replacing damaged or worn-out hydraulic cylinders can restore the equipment’s normal operational capabilities, ensuring optimal performance in various applications.
• Enhanced Safety: Regularly replacing hydraulic cylinders reduces safety hazards associated with cylinder failures, ensuring the safety of operators and equipment.
• Overload Protection: New cylinder designs often incorporate better overload protection mechanisms, enhancing safety.
• Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
• Standardized Components: Many hydraulic cylinders are standardized products, facilitating the availability of replacement parts in the market.

Applications

The Replacement Of AH166833 Steering Hydraulic Cylinder finds application in various scenarios, including:

Excavators

In excavators, the hydraulic cylinders in the boom or bucket may get damaged due to prolonged use or overloading, requiring replacement to restore normal operations.

Cranes

The hydraulic cylinders in the crane’s lifting boom are prone to wear during frequent lifting and lowering processes. Regular replacement is necessary to ensure safety.

Tractors

The hydraulic cylinders in front-end loader attachments of tractors may develop leaks or performance degradation due to continuous lifting and tilting operations, requiring replacement.

Harvesters

During the harvesting process, the hydraulic system experiences high pressures, and cylinders may get damaged due to fatigue. Timely replacement is necessary to maintain operational efficiency.

Automated Production Lines

Hydraulic cylinders are used to control robotic arms and other automated machinery. Cylinder failures can significantly impact production efficiency, necessitating immediate replacement.

Die Casting Machines

In high-pressure and high-temperature environments, hydraulic cylinders in die casting machines may experience performance degradation. Regular replacement ensures product quality.

Mining Equipment

Hydraulic cylinders are used for lifting and moving heavy loads in mining equipment. Due to harsh working conditions, regular inspections and replacements are necessary to avoid equipment failures.

Bulldozers

On bulldozers, wear of the hydraulic cylinders in the dozer blade can lead to decreased pushing ability. Timely replacement is essential to maintain operational efficiency.

Maintenance Tasks

Regular maintenance tasks for the Replacement Of AH166833 Steering Hydraulic Cylinder include:

1. Periodic Inspections

Regularly inspecting the hydraulic cylinder ensures early detection of any potential issues.

2. Proper Lubrication

Applying appropriate lubrication to the cylinder helps reduce friction and extends its lifespan.

3. Seal Replacement and Calibration Checks

Replacing worn-out seals and performing calibration checks are important to maintain optimal cylinder performance.

During installation, it is crucial to provide proper alignment guidance for the cylinder, recommend the use of suitable installation brackets to secure the cylinder, and suggest inspection, repair, and replacement procedures. We also offer replacement parts and rebuilding services to enhance the lifespan of the hydraulic cylinder.

Safety Considerations and Environmental Factors

When using the Replacement Of AH166833 Steering Hydraulic Cylinder, it is essential to follow safety measures to prevent accidents and protect personnel. Additionally, considering environmental factors when utilizing the cylinder ensures the preservation of natural resources and compliance with regulations.

Troubleshooting and Common Problems

Problem: Leaking hydraulic fluid

Solution: Inspect the seals and replace any damaged ones. Ensure proper installation and tighten connections.

Problem: Unusual noises during operation

Solution: Check for loose components, damaged seals, or signs of wear. Lubricate the cylinder and reassemble if necessary.

Problem: Lack of movement or insufficient force

Solution: Inspect for blockages or restrictions in the hydraulic lines. Check the fluid level and pressure. Replace the cylinder if needed.

Fault Diagnosis and Prevention

Effective fault diagnosis and prevention are essential for maintaining optimal performance of the hydraulic cylinder:

• Regular inspections and maintenance
• Proper lubrication
• Timely replacement of worn-out components
• Pre
