Product Introduction

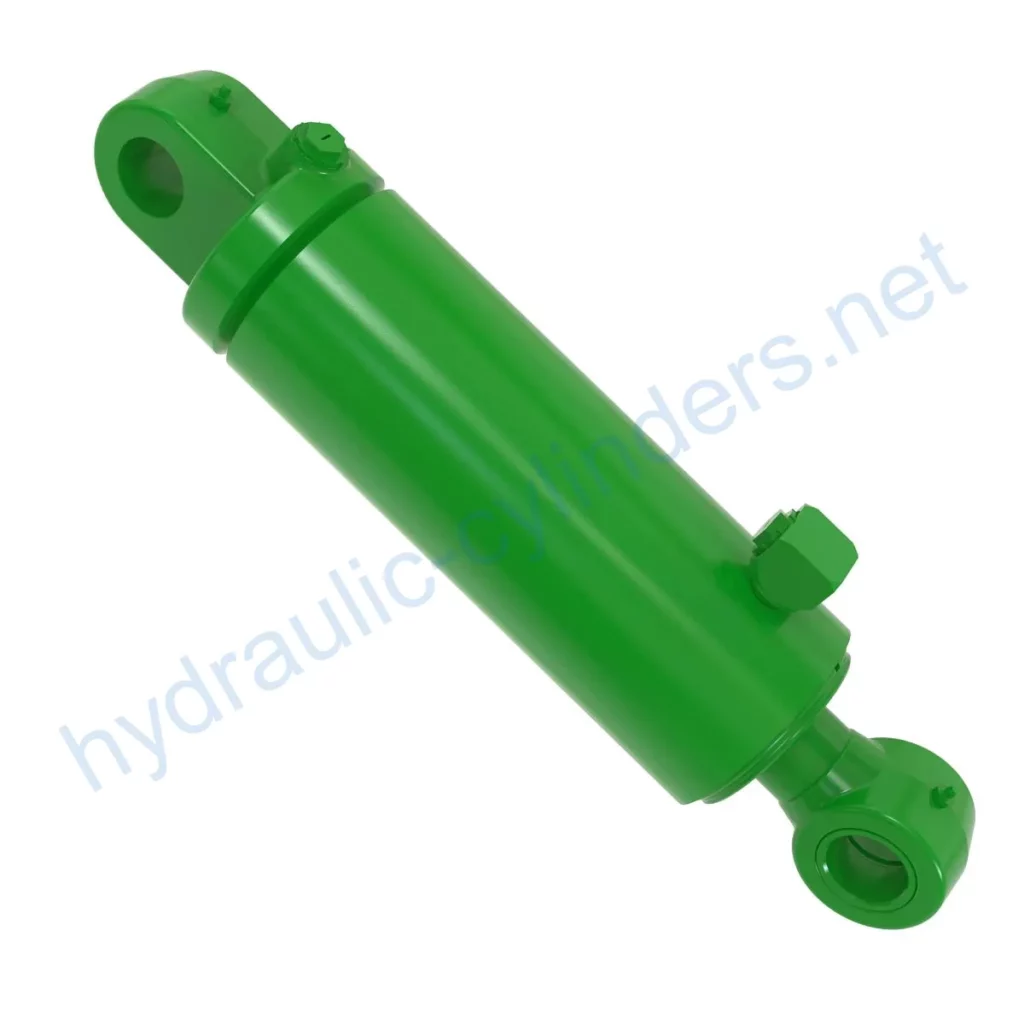

The Replacement Of AH211219 Lift Hydraulic Cylinder is a hydraulic cylinder designed to replace the original cylinder in various models such as 8120, 8220, 8320, 8420, and 8520. It has a weight of 75.12 lb, height of 6 in, and length of 24 in. This hydraulic cylinder plays a crucial role in the proper functioning of equipment by providing the necessary lifting and hydraulic power.
Product Specifications and Models
- Weight: 75.12 lb
- Height: 6 in
- Length: 24 in
- Models: 8120, 8220, 8320, 8420, 8520
Product Features
- Improved Equipment Performance: Replacing damaged or worn hydraulic cylinders can restore the equipment’s normal operational capability, ensuring optimal performance in various applications.
- Enhanced Safety: Regularly replacing hydraulic cylinders reduces safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.
- Overload Protection: The design of new cylinders often includes better overload protection mechanisms, improving overall safety.
- Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
- Standardized Components: Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.
Application Scenarios
Replacement Of AH211219 Lift Hydraulic Cylinder finds its application in various scenarios, including:
- Excavators: Hydraulic cylinders on excavator arms or buckets may get damaged due to prolonged use or overloading, requiring replacement to restore normal operations.
- Cranes: The boom hydraulic cylinders of cranes are prone to wear and tear due to frequent lifting and lowering, necessitating regular replacements to ensure safety.
- Tractors: Hydraulic cylinders on the front loaders of tractors may experience leaks or performance degradation during continuous lifting and tilting operations, requiring replacement.
- Harvesters: Hydraulic cylinders in harvesters endure high pressure during harvesting, and fatigue may lead to cylinder failure, requiring timely replacement to maintain efficiency.
- Automated Production Lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. Cylinder failures can impact production efficiency and should be replaced immediately.
- Die Casting Machines: Hydraulic cylinders in die casting machines may experience performance degradation in high-pressure and high-temperature environments. Regular replacements ensure product quality.
- Mining Equipment: Hydraulic cylinders are used for lifting and moving heavy loads in mining equipment. Due to harsh working conditions, regular inspections and replacements are necessary to avoid equipment failures.
- Bulldozers: Hydraulic cylinder wear on the bulldozer’s blade arm can reduce its pushing capacity, requiring timely replacement to maintain operational efficiency.
Maintenance Tasks
Regular maintenance of the Replacement Of AH211219 Lift Hydraulic Cylinder is crucial for ensuring its optimal performance and longevity. The following tasks should be performed:
- Regular Inspections: Periodic inspections help identify any potential issues or abnormalities in the hydraulic cylinder.
- Proper Lubrication: Adequate lubrication of the cylinder’s moving parts reduces friction and extends the lifespan of the components.
- Seal Replacement: Timely replacement of seals helps maintain proper sealing and prevents leaks.
- Calibration Checks: Regular calibration checks ensure the hydraulic cylinder operates within specified parameters.
Safety Considerations and Environmental Factors
When using the Replacement Of AH211219 Lift Hydraulic Cylinder, it is essential to follow safety measures and consider environmental factors to ensure safe and efficient operation. Safety precautions should be observed to prevent accidents and protect personnel and equipment.
Fault Diagnosis and Common Issues
Common issues that may arise with the Replacement Of AH211219 Lift Hydraulic Cylinder include:
- Leakage: Hydraulic fluid leakage can occur due to worn seals or damaged components.
- Poor Performance: Reduced lifting capacity or slower operation may indicate a problem with the hydraulic cylinder.
- Noise or Vibrations: Unusual noises or vibrations may indicate issues with the cylinder’s internal components.
- Seal Failure: Seal failure can result in fluid leaks and decreased performance.
- Cylinder Drift: Unintended movement or drifting of the cylinder may indicate internal problems.
Troubleshooting and Preventive Measures
To effectively diagnose and solve problems with the Replacement Of AH211219 Lift Hydraulic Cylinder, consider the following tips:
- Inspect the cylinder for visible damage or leaks.
- Check the seals and replace any worn or damaged ones.
- Ensure proper alignment during installation and follow recommended installation procedures.
- Provide guidance on aligning the cylinder correctly during the installation process.
- Use appropriate installation brackets to secure the cylinder.
- Recommend inspection, repair, and replacement procedures.
- Offer replacement parts and rebuilding services to extend the lifespan of the hydraulic cylinder.
- Provide tips to improve the longevity of the Replacement Of AH211219 Lift Hydraulic Cylinder.
Product Design Considerations and Selection Criteria
When choosing and designing hydraulic cylinders, several factors should be considered:
- Load-Bearing Capacity: The hydraulic cylinder should be designed to handle the intended load without structural failure.
- Sealing: Proper sealing mechanisms should be employed to prevent fluid leaks and ensure optimal performance.
- Durability: Select materials and manufacturing processes that ensure durability and resistance to wear and tear.
- Safety: Incorporate safety features to prevent accidents and ensure the overall safety of the equipment and personnel.
- Maintainability: Consider ease of maintenance and accessibility for repairs or replacements.
Sealing and Lubrication
The Replacement Of AH211219 Lift Hydraulic Cylinder incorporates various sealing and lubrication measures:
- It utilizes different sealing components, such as piston seals and rod seals, which are made from wear-resistant materials like polyurethane and nitrile rubber.
- The cylinder body and threaded ends undergo precise surface treatment to enhance wear resistance.
