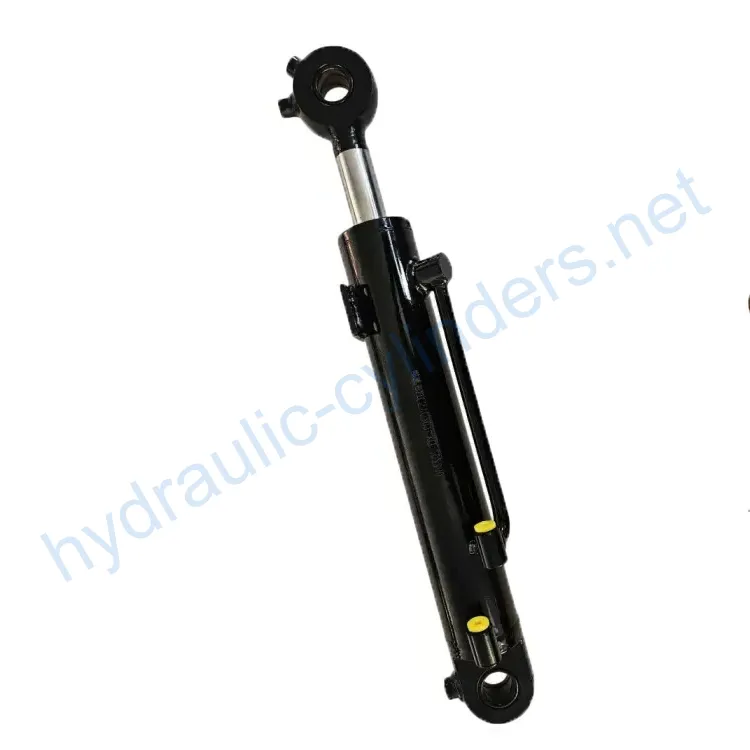

CSYG2074 Micro Digging Boom Cylinder

Introduction to the CSYG2074 Micro Digging Boom Cylinder

The CSYG2074 Micro Digging Boom Cylinder is a vital component in hydraulic systems, particularly in applications requiring precise digging and lifting capabilities. This hydraulic cylinder is designed for micro excavators and similar machinery, facilitating smooth and efficient operation. Hydraulic cylinders convert fluid power into linear mechanical motion, allowing operators to perform tasks such as digging, lifting, and moving heavy loads with minimal effort. The CSYG2074 boasts impressive specifications that enhance its performance, making it an essential part of modern excavation equipment.

Product Specifications

Key Parameters

• Cylinder Diameter: 63mm
• Rod Diameter: 35mm
• Travel: 280mm
• Installation Distance: 595mm

Expanded Specifications

The cylinder diameter of 63mm provides a sturdy structure suitable for heavy-duty tasks, ensuring stability under pressure. The rod diameter of 35mm enhances the strength of the cylinder, allowing it to withstand significant forces during operation. A travel distance of 280mm allows for versatile movement, essential for various digging needs. With an installation distance of 595mm, the CSYG2074 is designed for easy integration into existing machinery, making it a practical choice for manufacturers and operators alike.

Features of the CSYG2074

• High durability and strength for challenging environments.
• Precision engineering for accurate performance.
• Easy installation process for quick integration.
• Compatible with various hydraulic systems.
• Customizable options available to meet specific needs.

We can manufacture this product with high precision, ensuring that our cylinders can perfectly replace existing hydraulic cylinders without compromising performance or safety.

Applications of the CSYG2074

1. Construction Sites

The CSYG2074 is widely used in construction sites for tasks such as digging foundations, lifting materials, and performing earth-moving activities. Its ability to provide significant lifting power while maintaining precision makes it an asset to construction crews. Whether breaking ground for new structures or assisting in landscaping, the micro digging boom cylinder plays a crucial role in enhancing overall productivity.

2. Agriculture

Agricultural machinery employs the CSYG2074 for various tasks, including plowing, tilling, and planting. The cylinder??s efficient operation allows farmers to perform these tasks more effectively, contributing to increased yield and efficiency. By integrating this hydraulic component into their equipment, farmers can optimize their workflow, making it easier to handle crops and manage land.

3. Landscaping

In landscaping projects, the CSYG2074 is utilized for tasks like digging trenches, moving earth, and shaping land. Its compact size allows it to navigate tight spaces while still delivering powerful performance. Landscapers benefit from the precision and reliability of the cylinder, ensuring that projects are completed efficiently and to a high standard.

Design Considerations and Selection Criteria

Load Capacity

The load capacity of the CSYG2074 is a critical design consideration, as it determines the maximum weight the cylinder can handle during operation. Ensuring that the cylinder can safely lift and move heavy loads without failure is essential for both safety and efficiency. Manufacturers typically conduct extensive testing to validate these capacities, which must align with the requirements of the intended application.

Sealing Performance

Sealing is another vital aspect of hydraulic cylinder design. The seals must prevent hydraulic fluid from leaking, which could compromise performance and safety. The CSYG2074 employs high-quality sealing materials designed to withstand extreme conditions while ensuring optimal performance. A well-sealed cylinder minimizes the risk of contamination and reduces maintenance needs, enhancing overall reliability.

Durability

Durability is crucial for any hydraulic component, especially in demanding environments. The materials used in the CSYG2074 are selected for their strength and resistance to wear and tear. This durability ensures a longer lifespan and lower maintenance costs, providing excellent value for users over time. Regular assessments of material integrity are essential to ensure performance remains consistent.

Safety Features

Safety features are paramount in hydraulic cylinder design. The CSYG2074 incorporates various safety measures to prevent malfunctions that could lead to accidents. These include pressure relief valves and secure mounting options to ensure stability during operation. By prioritizing safety, manufacturers can protect both operators and equipment from potential hazards.

Maintenance Accessibility

Designing for easy maintenance is essential to ensure long-term functionality. The CSYG2074 is designed with maintenance in mind, allowing for simple access to seals and other components that may require regular attention. This facilitates quick inspections and repairs, minimizing downtime and improving overall operational efficiency.

Sealing and Lubrication

Proper sealing and lubrication are crucial for the effective operation of the CSYG2074. This cylinder utilizes various sealing components, including piston seals and rod seals, to maintain fluid integrity. The selection of durable materials, such as polyurethane and nitrile rubber, enhances wear resistance, prolonging the life of the seals. Additionally, the cylinder’s body and threaded ends undergo fine surface treatment to improve durability and wear resistance.

Regular lubrication with hydraulic oil is essential to maintain optimal performance. Operators should ensure that the cylinder is adequately lubricated to reduce friction and wear on moving parts. A maintenance schedule that includes checking and replenishing hydraulic oil is recommended to enhance the longevity of the cylinder.

Preventive Maintenance Measures

• Regular inspections for signs of wear or damage.
• Consistent lubrication to ensure smooth operation.
• Scheduled seal replacements to prevent leaks.

Implementing a preventive maintenance plan helps identify issues before they escalate, ensuring that the CSYG2074 remains in excellent working condition. Regular checks and timely interventions can significantly reduce repair costs and extend the life of the hydraulic cylinder.

Installation Guidelines

Correct installation of the CSYG2074 is vital for optimal performance. Begin by reviewing the manufacturer’s guidelines for the specific installation process tailored to your machine. Ensure that all components are clean and free of debris before starting the installation. Utilize appropriate mounting brackets to secure the cylinder in place and provide stability during operation. Proper alignment is essential; misalignment can lead to premature wear or failure. Adjust the cylinder’s position carefully to maintain straightness and avoid undue stress on seals and rods. Once installed, conduct a test run at low pressure to validate the installation. Check for leaks and ensure smooth operation before proceeding to full operational pressure. Regularly revisiting the installation integrity as part of maintenance ensures that the cylinder remains securely mounted.

Common Maintenance Tasks

定期检查

Frequent inspections help identify potential issues early. Look for signs of leaks, corrosion, or any physical damage. Addressing these problems promptly can prevent costly repairs and operational downtime.

Proper Lubrication

Lubrication is critical for the smooth functioning of the CSYG2074. Ensure that hydraulic oil levels are maintained, and apply lubricant to all moving parts as per the manufacturer’s recommendations. Proper lubrication reduces friction and wear, ultimately extending the cylinder’s life.

Seal Replacement and Calibration Checks

Regularly replacing seals is essential to prevent leaks and maintain performance. During maintenance checks, evaluate the condition of seals, and replace them as needed. Calibration checks should also be performed periodically to ensure that the cylinder operates within specified parameters, enhancing precision and efficiency.

Safety Considerations and Environmental Factors

Safety measures are critical when using the CSYG2074 Micro Digging Boom Cylinder. Operators should always wear appropriate personal protective equipment (PPE) and adhere to safety protocols to mitigate risks. Ensuring that the hydraulic system is free of leaks not only enhances safety but also minimizes environmental impact. Proper disposal of hydraulic fluids and any replaced components is essential to safeguard the environment, highlighting the importance of responsible practices in hydraulic operations.

Fault Diagnosis and Common Issues

• Hydraulic Fluid Leaks: Inspect seals and connections for wear.
• Poor Performance: Check for blockages or low fluid levels.
• Unusual Noises: Investigate for loose components or internal damage.

Diagnosing faults in the CSYG2074 involves a systematic approach. For hydraulic fluid leaks, check the seals and fittings for signs of wear. If performance issues arise, ensure that hydraulic fluid levels are adequate and free of contaminants. Unusual noises during operation may indicate loose components or internal damage, warranting immediate inspection to prevent further complications.

Troubleshooting Tips

If issues are identified, it??s essential to address them swiftly. For leaks, replace worn seals and ensure all fittings are secure. In case of poor performance, confirm that the hydraulic fluid is filled to the correct level and that no blockages exist in the system. Regular maintenance is the best preventive measure against these common problems, ensuring the CSYG2074 remains operational and efficient.
