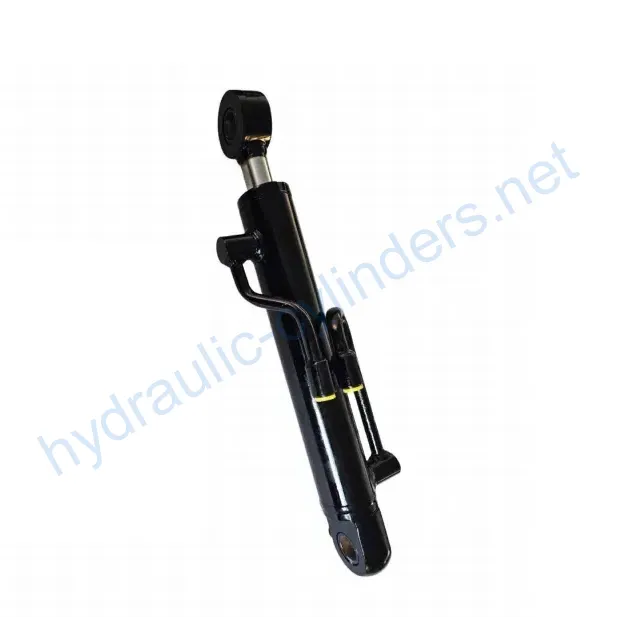

CSYG2076 Micro Digging Bucket Cylinder

Product Overview

The CSYG2076 Micro Digging Bucket Cylinder is a key component designed for various hydraulic applications, particularly in construction and excavation. This hydraulic cylinder plays a crucial role in converting hydraulic energy into mechanical force, allowing for efficient movement and control of digging buckets in machinery. With a diameter of 50mm and a rod diameter of 30mm, this cylinder is engineered for durability and precision. Its 230mm travel distance ensures enhanced performance in compact spaces, making it ideal for mini-excavators and similar equipment. The installation distance of 475mm provides versatility in integration with different machines, ensuring that operators can achieve optimal functionality in their hydraulic systems.

Specifications

Key Parameters

• Cylinder Diameter: 50mm
• Rod Diameter: 30mm
• Travel: 230mm
• Installation Distance: 475mm

These specifications reflect the cylinder’s ability to perform efficiently in various applications. The cylinder diameter and rod diameter are critical in determining the load-bearing capacity and overall strength of the cylinder, while the travel distance directly impacts the reach and operation of the machinery it is connected to. The installation distance is vital for ensuring compatibility with existing systems, making the CSYG2076 a versatile choice for operators looking to enhance their hydraulic capabilities.

Features

• High-quality construction for prolonged life.
• Compact design suitable for tight spaces.
• Efficient hydraulic performance with minimal leakage.
• Easy installation and compatibility with various machines.
• Customizable options available for specific applications.

Our company specializes in manufacturing this product, ensuring that our cylinders can perfectly replace existing hydraulic systems without compromising on quality or performance.

Application Scenarios

Construction Sites

In construction sites, the CSYG2076 Micro Digging Bucket Cylinder is essential for tasks such as digging, lifting, and moving earth. Its robust design allows it to withstand heavy loads while providing precise control, essential for executing complex tasks in confined spaces. The cylinder’s performance boosts productivity, allowing for faster project completion without sacrificing safety or efficiency.

Agricultural Equipment

This hydraulic cylinder is also widely used in agricultural machinery, such as compact tractors and loaders. Its ability to handle various attachments??like plows or buckets??makes it incredibly versatile. Farmers rely on this product to enhance their equipment’s functional capacity, ensuring tasks are completed more efficiently, whether it involves tilling soil or transporting materials.

Landscaping Machinery

In landscaping operations, the CSYG2076 cylinder facilitates the movement of machinery used for planting, grading, and other landscaping tasks. Its compact size allows for use in residential gardens where larger equipment cannot operate, providing landscapers with the necessary power to execute detailed work without compromising soil integrity.

Mining Equipment

Mining operations benefit from the robust capabilities of the CSYG2076, where hydraulic systems are critical for excavation and material handling. Its durable construction ensures reliability even in harsh conditions, helping to maintain continuous operations while minimizing downtime related to equipment failure.

Material Handling Equipment

The efficiency of the CSYG2076 extends to material handling, where it aids in lifting and transporting heavy goods within warehouses and construction sites. By providing reliable performance, this cylinder improves the overall workflow, ensuring that goods are handled correctly and safely.

Design Considerations and Selection Criteria

Load-Bearing Capacity

When selecting a hydraulic cylinder, the load-bearing capacity is paramount. The CSYG2076 is designed to handle significant weights, making it suitable for various demanding applications. This capability is crucial as it determines the cylinder’s performance and safety in operation. Engineers need to ensure that the cylinder can accommodate the maximum anticipated loads without failure, which can lead to operational downtime and increased costs.

Sealing Performance

Sealing is another critical aspect of hydraulic cylinder design. The CSYG2076 incorporates advanced sealing technologies to prevent fluid leakage, ensuring consistent performance. Effective seals are essential for maintaining pressure within the cylinder and reducing wear on internal components. The choice of sealing materials is also significant, as it impacts the cylinder’s longevity and efficiency, particularly in environments exposed to contaminants.

Durability

Durability is a key consideration in hydraulic cylinder design. The CSYG2076 is built from high-strength materials that can withstand harsh conditions and extensive use. This durability minimizes the need for frequent replacements and repairs, contributing to lower operational costs in the long run. The design must also consider resistance to corrosion and wear, ensuring that the cylinder remains functional over time.

Safety Features

Safety is paramount in hydraulic systems. The CSYG2076 includes safety features such as pressure relief valves to prevent overloading and ensure safe operation. These features are vital in protecting both the equipment and the operators, reducing the risk of accidents that could lead to injuries or equipment damage.

Maintenance Accessibility

Designing for maintenance accessibility is important, as it allows for easy inspections and repairs. The CSYG2076 is designed to simplify maintenance tasks, ensuring that critical components are readily accessible. This focus on maintenance reduces downtime and increases overall productivity, as operators can quickly address issues as they arise.

Sealing and Lubrication

Effective sealing and lubrication are essential for the performance of the CSYG2076 Micro Digging Bucket Cylinder. It utilizes various sealing components, including piston seals and rod seals, to ensure optimal operation. The selection of materials such as polyurethane and nitrile rubber enhances durability and wear resistance, vital in maintaining cylinder integrity over time. The cylinder body and threaded ends undergo precision machining to improve wear resistance, ensuring that the cylinder can function effectively in demanding environments.

Regular lubrication with hydraulic oil is necessary to prevent wear and prolong the lifespan of the cylinder. Operators should ensure that the correct amount of oil is used to maintain proper hydraulic pressure and avoid potential damage from insufficient lubrication. This practice not only enhances performance but also minimizes the likelihood of costly repairs.

Maintenance and Preventive Measures

• 定期检查
• Proper Lubrication
• Seal Replacement

Conducting regular inspections can help identify wear and tear before they lead to significant issues. Operators should check for any signs of leakage, corrosion, or unusual sounds during operation.

Proper lubrication is crucial for ensuring smooth operation. Operators should follow manufacturer recommendations for hydraulic oil type and frequency of lubrication to maintain efficiency and prevent damage.

Seal replacements should be performed as part of routine maintenance. Over time, seals can wear out and lose effectiveness, leading to leaks and reduced performance. Regularly checking and replacing seals as needed will maintain the cylinder’s performance.

Installation Guidelines

Proper installation of the CSYG2076 Micro Digging Bucket Cylinder is crucial for optimal performance. Begin by ensuring that the mounting surface is clean and free of debris. Use appropriate alignment tools to ensure the cylinder is correctly aligned with the machinery it is attached to. This step is vital in preventing undue stress and wear on the cylinder during operation.

When securing the cylinder, use the recommended mounting brackets and hardware to ensure a secure fit. Improperly installed cylinders can lead to misalignment, resulting in decreased performance and potential damage. After installation, check all connections and fittings to ensure they are tight and properly seated.

Once installed, conduct a thorough system check to ensure that there are no leaks and that the cylinder operates smoothly. It is advisable to operate the machinery at low pressure initially to confirm that the installation is successful before fully engaging the system.

Maintenance Tasks

定期检查

Regular inspections are crucial for ensuring the continued safe operation of the hydraulic cylinder. Operators should look for signs of wear or damage, including cracks in the cylinder body and signs of leakage. Establishing a routine inspection schedule can help catch issues early, preventing costly repairs and downtime.

Proper Lubrication

Proper lubrication is essential for maintaining the performance of the CSYG2076. Operators should regularly check the hydraulic fluid levels and ensure that the correct type of oil is used. Inadequate lubrication can lead to increased friction, wear, and potential failure of components, so it??s vital to follow the manufacturer??s guidelines on lubrication frequency and quantity.

Seal Replacement and Calibration Checks

Seal replacement should be part of the maintenance routine to prevent leaks and ensure efficient operation. Regular calibration checks are also essential to maintain the accurate functioning of the hydraulic cylinder. Properly calibrated systems ensure that the cylinder performs at its best, maximizing efficiency and safety.

Safety Considerations and Environmental Factors

Safety measures are critical when working with hydraulic cylinders, including the CSYG2076. Operators should follow all safety protocols to prevent accidents, including wearing appropriate protective equipment and ensuring that the work area is free of hazards. Understanding the potential risks associated with hydraulic systems, such as pressurized fluid leaks, is vital for maintaining safety in operations.

Fault Diagnosis and Common Issues

• Leakage around seals
• Unusual noises during operation
• Loss of pressure

Leakage around seals can indicate wear or damage that needs immediate attention. Operators should inspect seals regularly and replace them as needed to prevent fluid loss and maintain performance.

Unusual noises during operation can signal a problem, possibly related to improper lubrication or internal component wear. Corresponding actions should be taken to diagnose and rectify the issue quickly to avoid further damage.

Loss of pressure can impact the efficiency of the hydraulic system and may indicate leaks or blockages within the system. A thorough inspection of the entire system is necessary to identify and address the underlying cause.

Troubleshooting Tips and Solutions

To effectively diagnose and resolve issues with the CSYG2076, operators should first conduct visual inspections for signs of wear or damage. Addressing minor issues promptly can prevent them from escalating into more significant problems.

It??s essential to maintain a log of all maintenance activities, including inspections and repairs. This documentation can help identify recurring problems and inform future maintenance strategies. Preventive measures, such as regular lubrication and seal replacements, can significantly reduce the risk of potential problems, ensuring the longevity and performance of the hydraulic cylinder.
