Earring Joint Two Stage Telescopic Hydraulic Cylinder

Являясь одним из производителей, поставщиков и экспортеров механической продукции, мы предлагаем гидравлические цилиндры и многие другие изделия.

Пожалуйста, свяжитесь с нами для получения подробной информации.

Почта:[email protected]

Производитель поставщик экспортер гидроцилиндров.

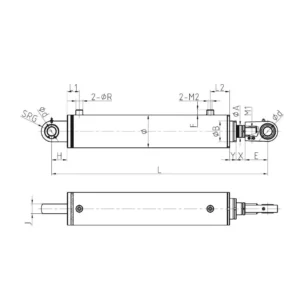

Earring Joint Two Stage Telescopic Hydraulic Cylinder

The earring joint two-stage telescopic hydraulic cylinder is a cutting-edge hydraulic device designed to provide efficient power transmission in a variety of industrial applications. With its innovative design, superior performance and versatility, this hydraulic cylinder offers precise control and increased productivity. Whether used in construction, material handling, or agricultural machinery, earring Joint two-stage telescopic hydraulic cylinders are designed to optimize hydraulic operation and provide outstanding results.

CX series compact cylinders are used for clamping cylinders. Its installation is small. Our factory has advanced hydraulic equipment, including a vertical and horizontal machining center and medium and large hydraulic cylinders. Thin cylinder production technology is excellent.

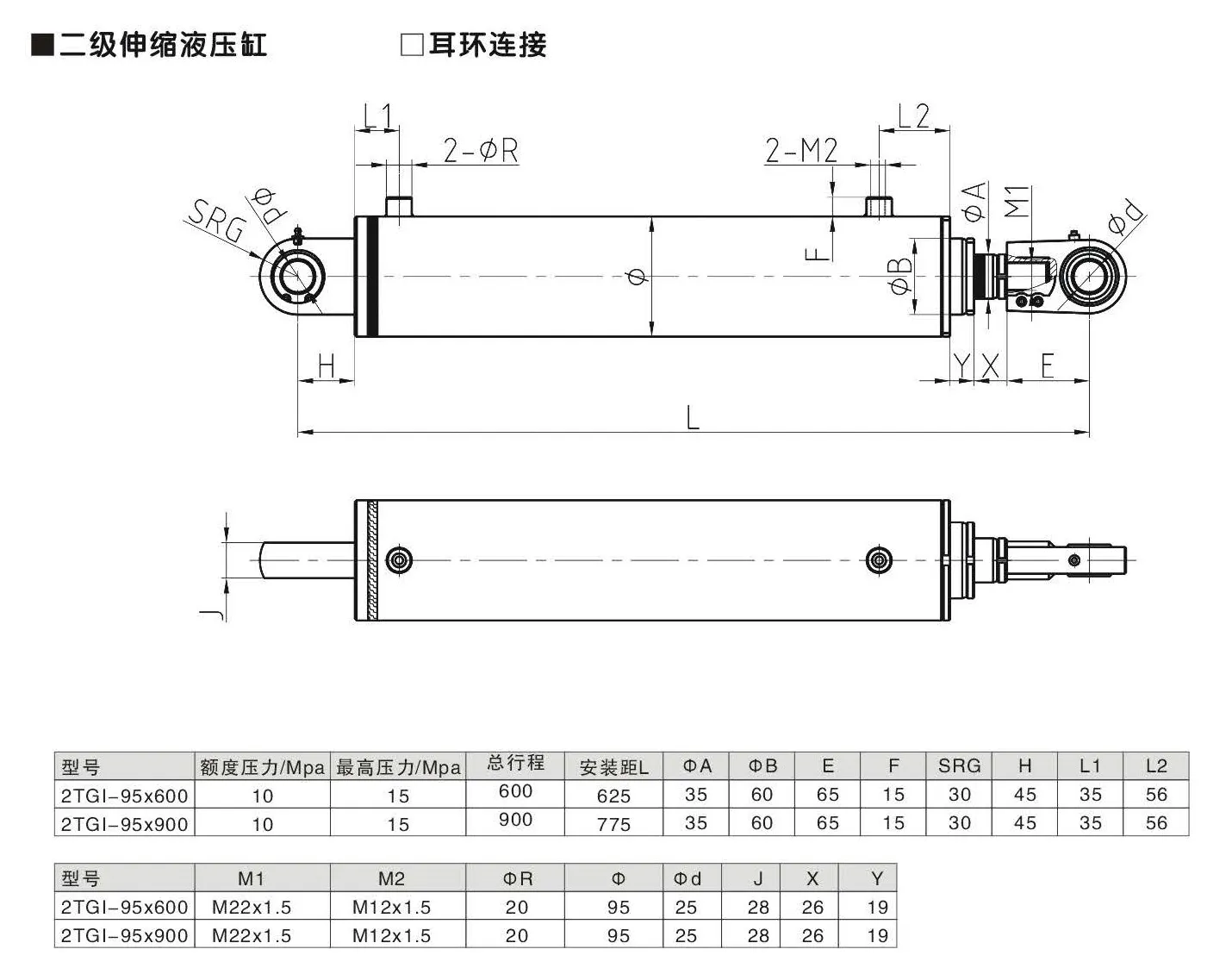

Earring Joint Two Stage Telescopic Hydraulic Cylinder Parameter:

Earring Joint Two Stage Telescopic Hydraulic Cylinder Основные характеристики и преимущества:

  1. Two-Stage Telescopic Design:
    • The earring joint two-stage telescopic hydraulic cylinder has a two-stage telescopic design that increases stroke length while maintaining a compact retractable size.
    • This design provides greater reach without compromising space constraints, making it ideal for applications where distance and compactness are critical.
  2. Earring Joint Construction:
    • The cylinder is equipped with an earring joint construction, which enables smooth and synchronized movement of the telescopic stages.
    • The earring joint mechanism ensures stability, precise alignment, and excellent load-bearing capacity during operation.
  3. Точное управление:
    • The earring joint two-stage telescopic hydraulic cylinder provides excellent expansion and contraction control, allowing precise positioning and efficient operation.
    • The precision control mechanism ensures smooth and controlled movement, improving overall productivity and accuracy.
  4. High Load-Bearing Capacity:
    • Designed to handle heavy loads and demanding industrial applications, earring joint two-stage telescopic hydraulic cylinders provide outstanding load-carrying capacity.
    • It can lift, push, or pull large amounts of weight, making it a reliable choice for tasks that require a lot of force.

Earring Joint Two Stage Telescopic Hydraulic Cylinder Метод использования:

  1. Монтаж и установка:
    • Determine the appropriate installation location of the earring joint secondary telescopic hydraulic cylinder according to your equipment or mechanical requirements.
    • Убедитесь, что монтажная поверхность прочная, ровная и способна выдержать вес и нагрузку цилиндра.
  2. Подключение к гидравлической системе:
    • Подключите гидроцилиндр к гидравлической системе с помощью совместимого гидравлического шланга или трубопровода.
    • Правильная центровка и герметичные соединения предотвращают утечки и обеспечивают оптимальную производительность.
  3. Эксплуатация цилиндра:
    • Activate the hydraulic system and initiate the movement of the secondary telescopic hydraulic cylinder of the earring connector.
    • Use a hydraulic control system, such as a valve or lever, to precisely control the extension and contraction of the cylinder for efficient operation.

How Does A One Way Hydraulic Cylinder Work?

A one-way, single-acting hydraulic cylinder operates using a hydraulic system to generate linear motion in one direction. It consists of a cylinder barrel, piston, piston rod, and hydraulic fluid. Here’s how it works:

  1. Hydraulic Fluid Supply:
    • The hydraulic system supplies pressurized fluid, typically oil, to the cylinder through a hydraulic pump or power source.
  2. Cylinder Extension:
    • When hydraulic fluid is supplied to the cylinder, it enters the cylinder barrel through an inlet port.
    • The pressurized fluid pushes against the piston, causing it to move in the desired direction (typically extending the piston rod).
    • As the fluid pressure increases, it overcomes the resistance or load on the piston, resulting in the extension of the piston rod.
  3. Sealing Mechanism:
    • The cylinder barrel is sealed to prevent fluid leakage. It typically incorporates seals around the piston and piston rod, such as O-rings or lip seals.
    • These seals ensure that the pressurized fluid acts only on one side of the piston, creating a pressure imbalance that drives the piston in the desired direction.
  4. Return Stroke:
    • After the extension stroke, the hydraulic fluid is released or vented from the cylinder.
    • The hydraulic system may use gravity, a spring, or an external force to retract the piston and piston rod to their initial positions.
    • During the return stroke, the hydraulic fluid flows out of the cylinder through an outlet port.
  5. Load Support:
    • The piston rod of the hydraulic cylinder is often connected to a load or mechanism that requires linear motion or force.
    • As the piston extends or retracts, it provides the necessary force to move or support the load.
  6. Control and Valves:
    • To control the extension and retraction of the one-way hydraulic cylinder, the hydraulic system incorporates valves, such as check valves or directional control valves.
    • These valves regulate the flow of hydraulic fluid, allowing it to enter and exit the cylinder in the desired direction.
  7. Application Specifics:
    • One-way hydraulic cylinders are commonly used in applications where force or motion is required in only one direction, such as lifting, pushing, or clamping.
    • They are often found in hydraulic jacks, hydraulic presses, dump trucks, and various other industrial and mobile equipment.

Возможности и мощности завода:

(1) Сборка

Мы располагаем первоклассной независимой сборочной платформой для проведения исследований и разработок. Цех по производству гидравлических цилиндров имеет четыре полуавтоматические линии сборки подъемных цилиндров и одну автоматическую линию сборки цилиндров наклона с проектной годовой производственной мощностью 1 млн. штук. Цех по производству специальных цилиндров оснащен полуавтоматической очистной сборочной системой различных спецификаций с проектной годовой производственной мощностью 200 тыс. штук и оснащен известным обрабатывающим оборудованием с ЧПУ, обрабатывающим центром, высокоточным специальным оборудованием для обработки цилиндров, роботом-сварщиком, автоматической очистной машиной, автоматической сборочной машиной цилиндров и автоматической покрасочной производственной линией. Существующее критически важное оборудование насчитывает более 300 комплектов (комплектов). Оптимальное распределение и эффективное использование ресурсов оборудования позволяет обеспечить требования к точности изделий и удовлетворить потребности в высоком качестве продукции.

(2) Механическая обработка

Цех оснащен специализированным токарным центром с наклонной направляющей, обрабатывающим центром, высокоскоростным хонинговальным станком, сварочным роботом и другим сопутствующим оборудованием, которое позволяет обрабатывать цилиндрические трубы с максимальным внутренним диаметром 400 мм и максимальной длиной 6 м.

(3) Сварка

(4) Painting & coating

With small and medium-sized cylinder automatic water-based paint coating lines, to achieve automatic robot loading and unloading and automatic spraying, the design capacity of 4000 pieces per shift;
We also have a semi-automatic paint production line for large cylinders powered by a power chain, with 60 cases per shift design capacity.

(5) Testing

We have first-class inspection facilities and test beds to ensure that the performance of the cylinder meets the requirements.





We are one of the best compact hydraulic cylinder manufacturers. We can offer comprehensive compact hydraulic cylinder stock. We also provide corresponding agricultural gearboxes. We have exported our products to clients worldwide and earned a good reputation because of our superior product quality and after-sales service. We welcome customers at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!

Take a Tour of Our VR Factory:

Take a tour of our VR factory with the following
