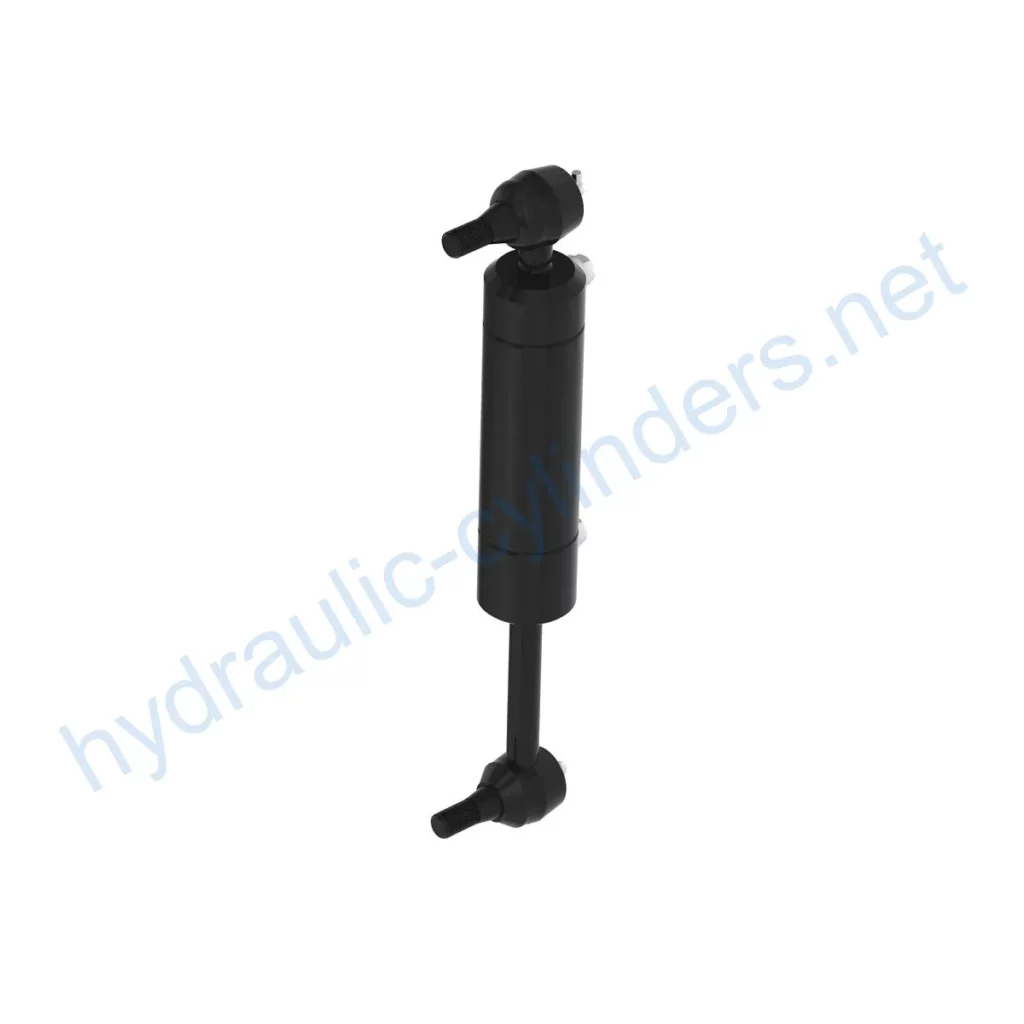

Replacement Of TCA13984 Hydraulic Cylinder

The Replacement Of TCA13984 Hydraulic Cylinder is a vital component used in various machines, including models 1545, 1565, 1580, and 1585. It plays a crucial role in ensuring the smooth operation of these machines.

Specifications

• Weight: 7.52 lb
• Height: 2.4 in
• Width: 3.3 in
• Length: 15 in

Product Features

• Improved Equipment Performance

  Replacing damaged or worn hydraulic cylinders can restore the normal operational capabilities of the equipment, ensuring optimal performance in various applications.

• Enhanced Safety

  Regularly replacing hydraulic cylinders reduces safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.

• Overload Protection

  New cylinder designs often incorporate better overload protection mechanisms, improving overall safety.

• Quick Installation

  Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.

• Standardized Components

  Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

We have the capability to produce this product, offering perfect replacements for these hydraulic cylinders.

Applications

• Excavators

  Hydraulic cylinders on excavator arms or buckets may become damaged due to prolonged use or overload, requiring replacement to restore normal operation.

• Cranes

  Hydraulic cylinders on crane booms are susceptible to wear and tear during frequent lifting and lowering processes, necessitating regular replacement for safety purposes.

• Tractors

  Front-end loader hydraulic cylinders on tractors may experience leaks or performance degradation during constant lifting and tilting operations, requiring replacement.

• Harvesters

  During the harvesting process, hydraulic systems endure high pressure, and cylinders may suffer from fatigue, necessitating timely replacement to maintain work efficiency.

• Automated Production Lines

  Hydraulic cylinders are used to control robotic arms and other automated equipment. Cylinder failures can significantly impact production efficiency, requiring immediate replacement.

• Die Casting Machines

  In high-pressure and high-temperature environments, hydraulic cylinders in die casting machines may experience performance degradation. Regular replacement ensures product quality.

• Mining Equipment

  Hydraulic cylinders are used for lifting and moving heavy loads in mining equipment. Due to harsh working conditions, regular inspection and replacement are necessary to prevent equipment failures.

• Bulldozers

  Hydraulic cylinder wear on the dozer blade can lead to decreased pushing power. Timely replacement is required to maintain optimal performance.

Maintenance

Regular maintenance tasks for hydraulic cylinders include:

• Inspection

  Periodically inspect the condition of the cylinders to identify any signs of wear, leaks, or damage.

• Lubrication

  Proper lubrication using the appropriate hydraulic oil ensures smooth operation and extends the lifespan of the cylinders.

• Seal Replacement and Calibration Checks

  Replace worn seals and perform calibration checks to maintain optimum performance. During installation, provide proper guidance for aligning the cylinder and recommend the use of suitable mounting brackets for stability.

We offer inspection, repair, and replacement services to improve the lifespan of the hydraulic cylinders, and provide guidance on correct installation practices to ensure safety.

Safety Considerations and Environmental Factors

When using hydraulic cylinders, it is crucial to follow safety measures to prevent accidents. This includes proper training, using appropriate personal protective equipment, and adhering to safe operating procedures. Environmental factors should also be considered to minimize any potential impact on the surroundings.

Troubleshooting and Common Issues

Some common hydraulic cylinder issues and their troubleshooting methods include:

• Leakage

  Check for damaged seals or fittings, and replace them if necessary. Ensure proper installation and tighten any loose connections.

• Slow or Inconsistent Operation

  Inspect the hydraulic fluid level and quality, and check for clogged filters. Adjust the pressure settings if needed.

• Excessive Noise or Vibrations

  Inspect mounting brackets and connections for looseness or damage. Check the fluid level and quality, and ensure proper lubrication.

By following these troubleshooting methods, readers can effectively diagnose and resolve problems with their hydraulic cylinders. Additionally, providing preventive measures can help minimize potential issues.

Design Considerations and Selection Criteria

When selecting hydraulic cylinders, several design considerations should be taken into account:

• Load-Bearing Capacity

  Ensure the selected cylinders can handle the intended loads to prevent premature failure or compromised performance.

• Sealing and Durability

  Choose cylinders with high-quality seals and durable construction to withstand the demanding operating conditions.

• Safety and Maintenance

  Consider safety features and ease of maintenance, such as accessible mounting points and serviceable components.

Sealing and Lubrication

Hydraulic cylinders utilize various seals, including piston seals and rod seals, made from wear-resistant materials such as polyurethane and nitrile rubber. The cylinder body and threaded ends undergo meticulous surface treatment to enhance wear resistance. Regular lubrication with the appropriate hydraulic oil is essential for proper functioning.

Periodic inspection and preventive maintenance measures are essential to ensure the longevity of hydraulic cylinders. This includes checking for leaks, applying appropriate lubrication, replacing seals when necessary, and performing calibration checks.

Proper Installation and Maintenance

To ensure the proper installation and maintenance
